Ferrite Beads
Part Number Impedance
@100MHz (ohm)		 Download S2P file View Insertion Loss vs Frequency View Impedance Simulation
MGB1005_G MGB1005G601FBP 600 MGB1005G601.S2P MGB1005G601.JPG MGB1005G601.PNG
MGB1005G102YBP 1000 MGB1005G102.S2P MGB1005G102.JPG MGB1005G102.PNG
MCB1005_S MCB1005S100FBP 20 MCB1005S100.S2P MCB1005S100. JPG MCB1005S100.PNG

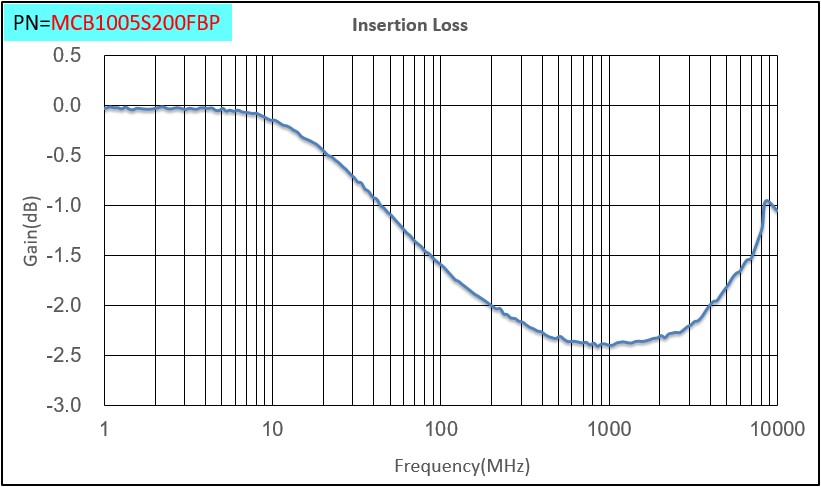

MCB1005S200FBP 20 MCB1005S200.S2P MCB1005S200. JPG MCB1005S200.PNG
MCB1005S300FBP 30 MCB1005S300.S2P MCB1005S300. JPG MCB1005S300.PNG

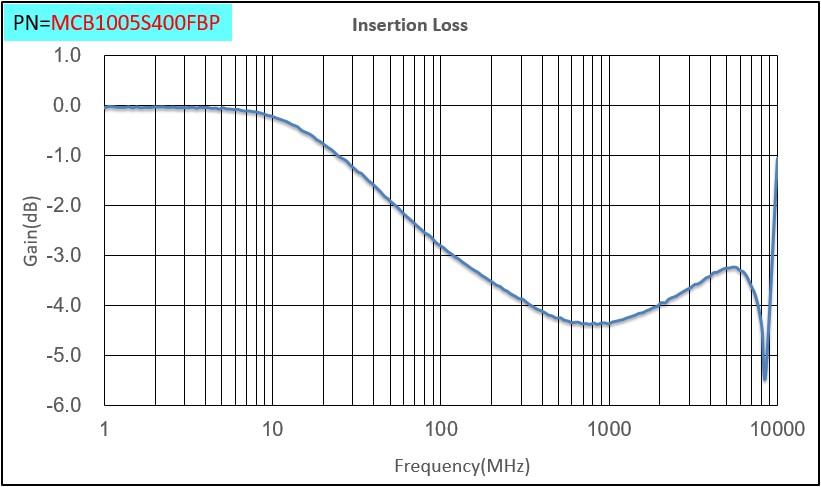

MCB1005S400FBP 40 MCB1005S400.S2P MCB1005S400. JPG MCB1005S400.PNG
MCB1005S600FBP 60 MCB1005S600.S2P MCB1005S600. JPG MCB1005S600.PNG
MCB1005S700FBP 70 MCB1005S700.S2P MCB1005S700. JPG MCB1005S700.PNG

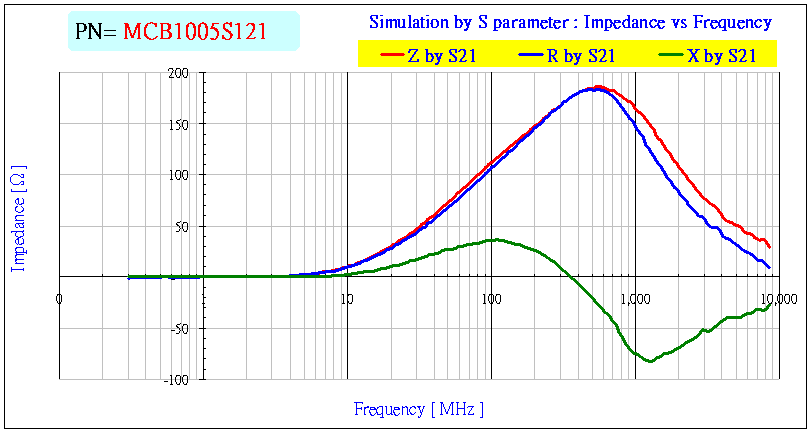

MCB1005S121FBP 120 MCB1005S121.S2P MCB1005S121. JPG MCB1005S121.PNG
MCB1005S241EBP 240 MCB1005S241.S2P MCB1005S241. JPG MCB1005S241.PNG
MCB1005S301EBP 300 MCB1005S301.S2P MCB1005S301. JPG MCB1005S301.PNG
MCB1005S471EBP 470 MCB1005S471.S2P MCB1005S471. JPG MCB1005S471.PNG
MCB1005S601EBP 600 MCB1005S601.S2P MCB1005S601. JPG MCB1005S601.PNG
MCB1005S102EBP 1000 MCB1005S102.S2P MCB1005S102. JPG MCB1005S102.PNG
MCB1005_B MCB1005B601FBP 600 MCB1005B601.S2P MCB1005B601.JPG MCB1005B601.PNG

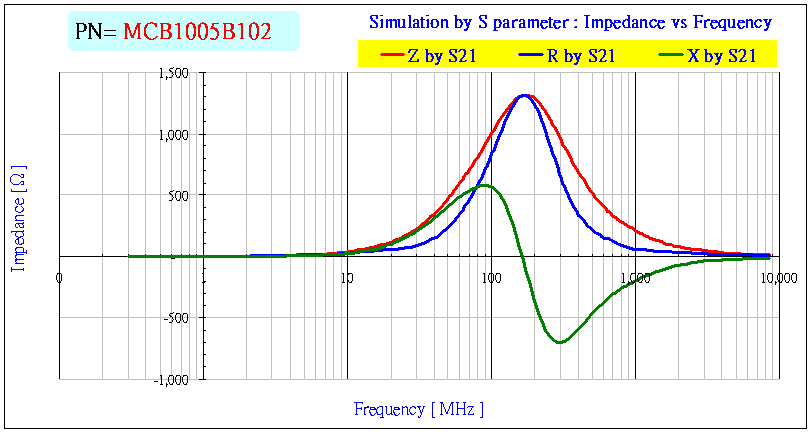

MCB1005B102EBP 1000 MCB1005B102.S2P MCB1005B102.JPG MCB1005B102.PNG

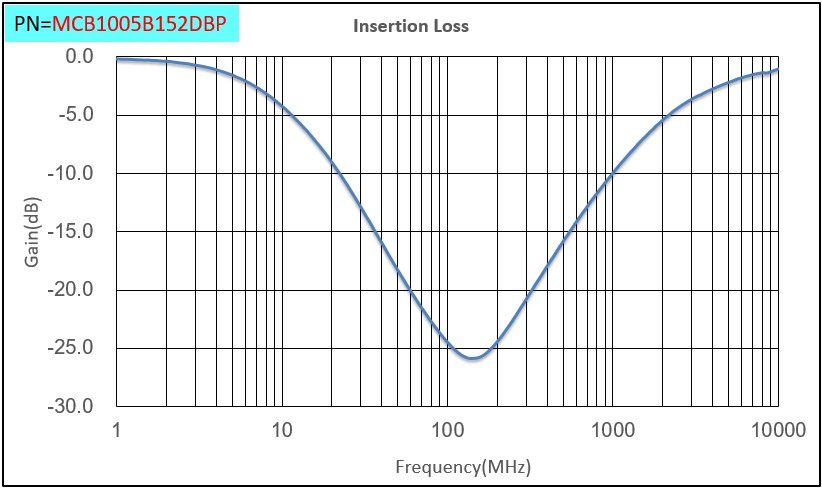

MCB1005B152DBP 1500 MCB1005B152.S2P MCB1005B152.JPG MCB1005B152.PNG
MCB1005_H MCB1005H220FBP 22 MCB1005H220.S2P MCB1005H220.JPG MCB1005H220.PNG
MCB1005H750FBP 75 MCB1005H750.S2P MCB1005H750.JPG MCB1005H750.PNG
MCB1005H121FBP 120 MCB1005H121.S2P MCB1005H121.JPG MCB1005H121.PNG
MCB1608_H MCB1608H200HBP 20 MCB1608H200.S2P MCB1608H200.JPG MCB1608H200.PNG

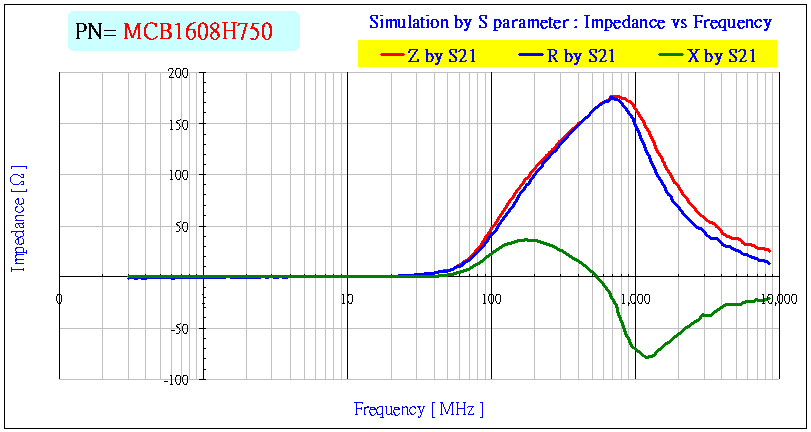

MCB1608H750EBP 75 MCB1608H750.S2P MCB1608H750.JPG MCB1608H750.PNG

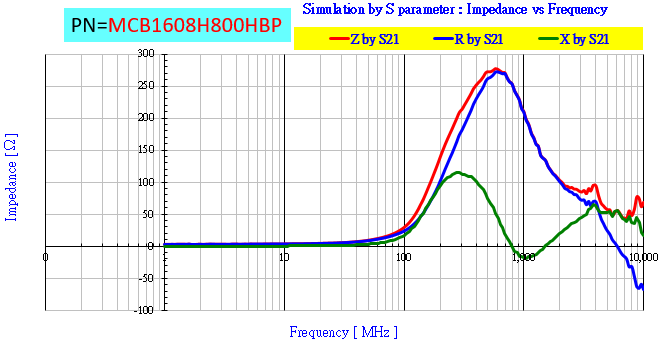

MCB1608H800HBP 80 MCB1608H800.S2P MCB1608H800.JPG MCB1608H800.PNG
MCB1608H121EBP 120 MCB1608H121.S2P MCB1608H121.JPG MCB1608H121.PNG
MCB1608H301EBP 300 MCB1608H301.S2P MCB1608H301.JPG MCB1608H301.PNG
MCB1608H601EBP 600 MCB1608H601.S2P MCB1608H601.JPG MCB1608H601.PNG
MCB1608H102EBP 1000 MCB1608H102.S2P MCB1608H102. JPG MCB1608H102.PNG
MCB1608_S MCB1608S100IBP 10 MCB1608S100.S2P MCB1608S100.JPG MCB1608S100.PNG
MCB1608S300IBP 30 MCB1608S300.S2P MCB1608S300.JPG MCB1608S300.PNG
MCB1608S600IBP 60 MCB1608S600.S2P MCB1608S600.JPG MCB1608S600.PNG
MCB1608S800IBP 80 MCB1608S800.S2P MCB1608S800. JPG MCB1608S800.PNG
MCB1608S121IBP 120 MCB1608S121.S2P MCB1608S121.JPG MCB1608S121.PNG
MCB1608S181FBP 180 MCB1608S181.S2P MCB1608S181.JPG MCB1608S181.PNG
MCB1608S221FBP 220 MCB1608S221.S2P MCB1608S221. JPG MCB1608S221.PNG
MCB1608S301FBP 300 MCB1608S301.S2P MCB1608S301. JPG MCB1608S301.PNG
MCB1608S471FBP 470 MCB1608S471.S2P MCB1608S471. JPG MCB1608S471.PNG
MCB1608S601EBP 600 MCB1608S601.S2P MCB1608S601. JPG MCB1608S601.PNG
MCB1608S102CBP 1000 MCB1608S102.S2P MCB1608S102. JPG MCB1608S102.PNG
MCB1608S182CBP 1800 MCB1608S182.S2P MCB1608S182. JPG MCB1608S182.PNG
MCB1608S252CBP 2500 MCB1608S252.S2P MCB1608S252. JPG MCB1608S252.PNG
MCB2012_H MCB2012H121EBP 120 MCB2012H121.S2P MCB2012H121. JPG MCB2012H121.PNG
MCB2012H221EBP 220 MCB2012H221.S2P MCB2012H221. JPG MCB2012H221.PNG
MCB2012H301EBP 300 MCB2012H301.S2P MCB2012H301. JPG MCB2012H301.PNG

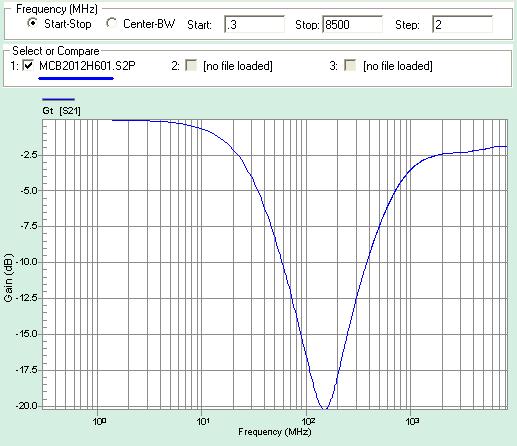

MCB2012H601EBP 600 MCB2012H601.S2P MCB2012H601. JPG MCB2012H601.PNG
MCB2012_S MCB2012S300KBP 30 MCB2012S300.S2P MCB2012S300. JPG MCB2012S300.PNG

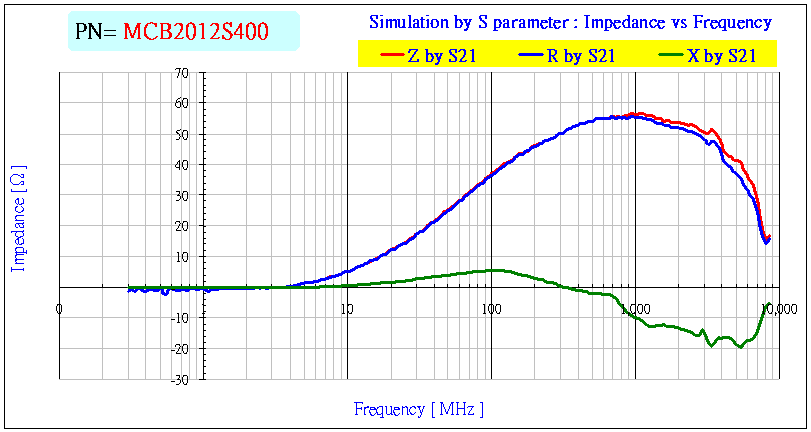

MCB2012S400KBP 40 MCB2012S400.S2P MCB2012S400. JPG MCB2012S400.PNG
MCB2012S600KBP 60 MCB2012S600.S2P MCB2012S600. JPG MCB2012S600.PNG
MCB2012S800KBP 80 MCB2012S800.S2P MCB2012S800. JPG MCB2012S800.PNG
MCB2012S121KBP 120 MCB2012S121.S2P MCB2012S121. JPG MCB2012S121.PNG
MCB2012S221HBP 220 MCB2012S221.S2P MCB2012S221. JPG MCB2012S221.PNG
MCB2012S301HBP 300 MCB2012S301.S2P MCB2012S301. JPG MCB2012S301.PNG
MCB2012S601HBP 600 MCB2012S601.S2P MCB2012S601. JPG MCB2012S601.PNG
MCB2012S102FBP 1000 MCB2012S102.S2P MCB2012S102. JPG MCB2012S102.PNG
MCB2012S202EBP 2000 MCB2012S202.S2P MCB2012S202. JPG MCB2012S202.PNG
MCB3216 MCB3216S310KBE 31 MCB3216S310.S2P MCB3216S310. JPG MCB3216S310.PNG

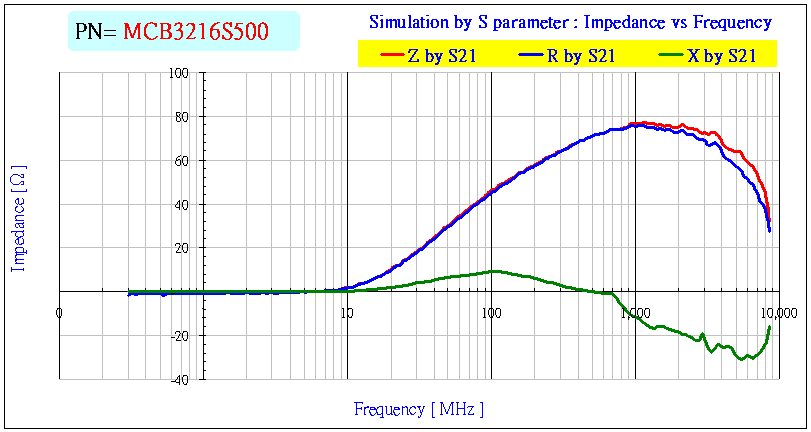

MCB3216S500KBE 50 MCB3216S500.S2P MCB3216S500. JPG MCB3216S500.PNG
MCB3216S700KBE 70 MCB3216S700.S2P MCB3216S700. JPG MCB3216S700.PNG
MCB3216S121IBE 120 MCB3216S121.S2P MCB3216S121. JPG MCB3216S121.PNG
MCB3216S601HBE 600 MCB3216S601.S2P MCB3216S601. JPG MCB3216S601.PNG
MCB3216S102HBE 1000 MCB3216S102.S2P MCB3216S102. JPG MCB3216S102.PNG
MCB3216S122HBE 1200 MCB3216S122.S2P MCB3216S122. JPG MCB3216S122.PNG

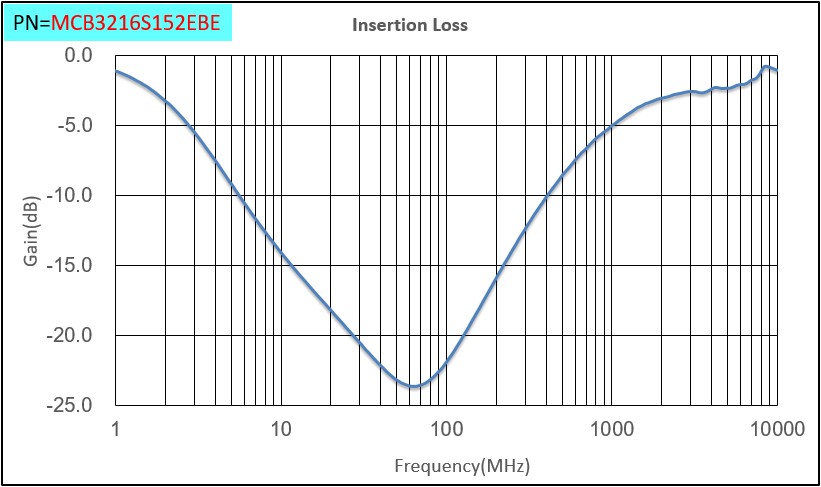

MCB3216S152EBE 1500 MCB3216S152.S2P MCB3216S152. JPG MCB3216S152.PNG
MCB3216S202EBE 2000 MCB3216S202.S2P MCB3216S202. JPG MCB3216S202.PNG
MCB3225 MCB3225S600KBE 60 MCB3225S600.S2P MCB3225S600.JPG MCB3225S600.PNG
MCB3225S900KBE 90 MCB3225S900.S2P MCB3225S900.JPG MCB3225S900.PNG
MCB4516 MCB4516S800KBE 80 MCB4516S800.S2P MCB4516S800.JPG MCB4516S800.PNG
MCB4516S151KBE 150 MCB4516S151.S2P MCB4516S151. JPG MCB4516S151.PNG
MCB4532 MCB4532S700KBE 70 MCB4532S700.S2P MCB4532S700. JPG MCB4532S700.PNG
MCB4532S800KBE 80 MCB4532S800.S2P MCB4532S800. JPG MCB4532S800.PNG
MCB4532S121KBE 120 MCB4532S121.S2P MCB4532S121. JPG MCB4532S121.PNG
MHC1005 MHC1005S100NBP 10 MHC1005S100.S2P MHC1005S100. JPG MHC1005S100.PNG
MHC1005S300NBP 30 MHC1005S300.S2P MHC1005S300. JPG MHC1005S300.PNG
MHC1005S600LBP 60 MHC1005S600.S2P MHC1005S600. JPG MHC1005S600.PNG
MHC1005S121MBP 120 MHC1005S121.S2P MHC1005S121. JPG MHC1005S121.PNG
MHC1608 MHC1608S300QBP 30 MHC1608S300.S2P MHC1608S300. JPG MHC1608S300.PNG
MHC1608S600QBP 60 MHC1608S600.S2P MHC1608S600. JPG MHC1608S600.PNG
MHC1608S800QBP 80 MHC1608S800.S2P MHC1608S800. JPG MHC1608S800.PNG
MHC1608S121PBP 120 MHC1608S121.S2P MHC1608S121. JPG MHC1608S121.PNG
MHC1608S221NBP 220 MHC1608S221.S2P MHC1608S221. JPG MHC1608S221.PNG
MHC1608S301NBP 300 MHC1608S301.S2P MHC1608S301. JPG MHC1608S301.PNG
MHC1608S471LBP 470 MHC1608S471.S2P MHC1608S471.JPG MHC1608S471.PNG

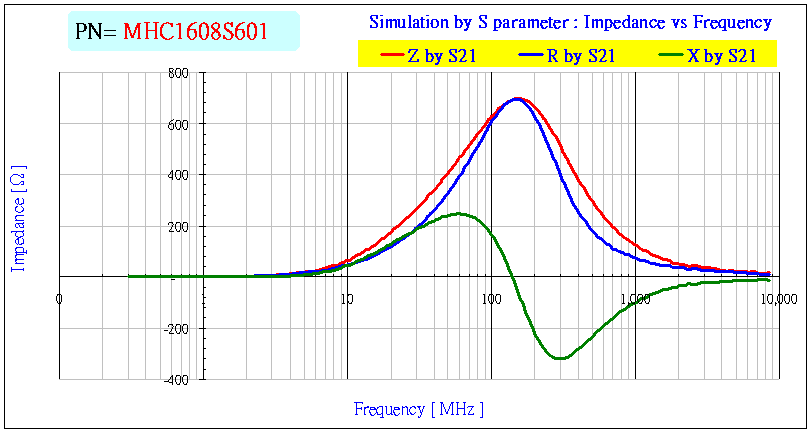

MHC1608S601LBP 600 MHC1608S601.S2P MHC1608S601. JPG MHC1608S601.PNG
MHC1608S102ZBPA80 1000 MHC1608S102.S2P MHC1608S102. JPG MHC1608S102.PNG
MHC2012 MHC2012S310WBP 31 MHC2012S310.S2P MHC2012S310. JPG MHC2012S310.PNG
MHC2012S400RBP 40 MHC2012S400.S2P MHC2012S400. JPG MHC2012S400.PNG
MHC2012S600QBP 60 MHC2012S600.S2P MHC2012S600. JPG MHC2012S600.PNG
MHC2012S800UBP 80 MHC2012S800.S2P MHC2012S800. JPG MHC2012S800.PNG
MHC2012S121UBP 120 MHC2012S121.S2P MHC2012S121. JPG MHC2012S121.PNG
MHC2012S221NBP 220 MHC2012S221.S2P MHC2012S221. JPG MHC2012S221.PNG
MHC2012S221QBP 220 MHC2012S221.S2P MHC2012S221. JPG MHC2012S221.PNG
MHC2012S301NBP 300 MHC2012S301.S2P MHC2012S301. JPG MHC2012S301.PNG
MHC2012S331NBP 330 MHC2012S331.S2P MHC2012S331. JPG MHC2012S331.PNG
MHC2012S601NBP 600 MHC2012S601.S2P MHC2012S601. JPG MHC2012S601.PNG
MHC2012S102LBP 1000 MHC2012S102.S2P MHC2012S102. JPG MHC2012S102.PNG
MHC3216 MHC3216S300WBE 30 MHC3216S300.S2P MHC3216S300. JPG MHC3216S300.PNG
MHC3216S500WBE 50 MHC3216S500.S2P MHC3216S500. JPG MHC3216S500.PNG
MHC3216S800RBE 80 MHC3216S800.S2P MHC3216S800. JPG MHC3216S800.PNG
MHC3216S121WBE 120 MHC3216S121.S2P MHC3216S121. JPG MHC3216S121.PNG
MHC3216S601PBE 600 MHC3216S601.S2P MHC3216S601. JPG MHC3216S601.PNG
MHC3216S122LBE 1200 MHC3216S122.S2P MHC3216S122. JPG MHC3216S122.PNG
MHC3225 MHC3225S600MBE 60 MHC3225S600.S2P MHC3225S600. JPG MHC3225S600.PNG
MHC3225S102NBE 1000 MHC3225S102.S2P MHC3225S102. JPG MHC3225S102.PNG
MHC4516 MHC4516S300WBE 60 MHC4516S300.S2P MHC4516S300. JPG MHC4516S300.PNG
MHC4516S851MBE 850 MHC4516S851.S2P MHC4516S851. JPG MHC4516S851.PNG

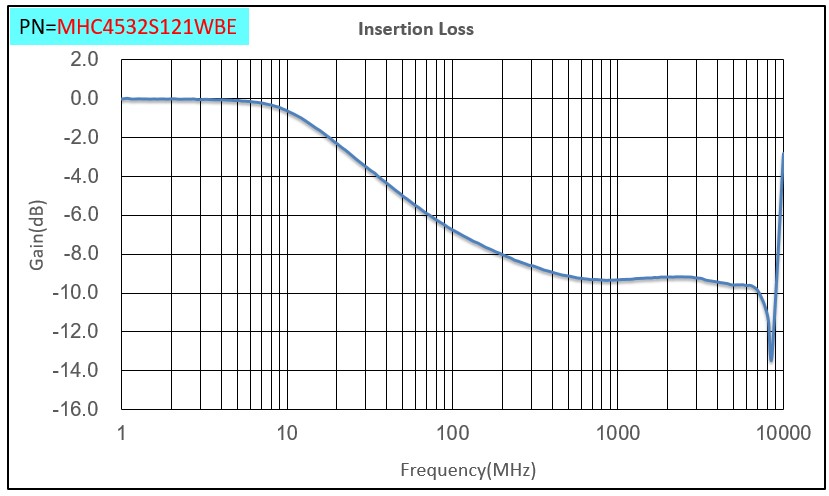

MHC4532 MHC4532S121WBE 120 MHC4532S121.S2P MHC4532S121. JPG MHC4532S121.PNG

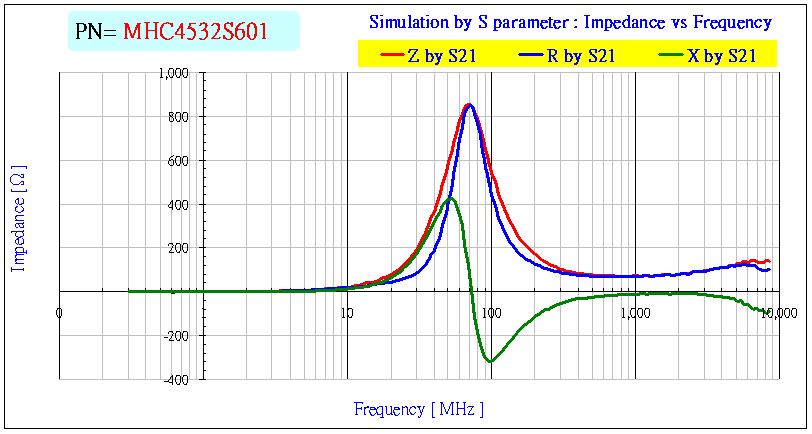

MHC4532S601QBE 600 MHC4532S601.S2P MHC4532S601. JPG MHC4532S601.PNG
MHC4532S132QBE 1300 MHC4532S132.S2P MHC4532S132. JPG MHC4532S132.PNG
MHC1005_P MHC1005P330ZBP3A0 33 MHC1005P330.S2P MHC1005P330.JPG MHC1005P330.PNG
MHC1005P600ZBP2A5 60 MHC1005P600.S2P MHC1005P600.JPG MHC1005P600.PNG
MHC1005P800ZBP2A3 80 MHC1005P800.S2P MHC1005P800.JPG MHC1005P800.PNG
MHC1005P121ZBP2A0 120 MHC1005P121.S2P MHC1005P121.JPG MHC1005P121.PNG
MHC1005P181ZBP1A5 180 MHC1005P181.S2P MHC1005P181.JPG MHC1005P181.PNG
MHC1005P221ZBP1A4 220 MHC1005P221.S2P MHC1005P221.JPG MHC1005P221.PNG
MHC1005P331ZBP1A2 330 MHC1005P331.S2P MHC1005P331.JPG MHC1005P331.PNG
MHC1005P471ZBP1A0 470 MHC1005P471.S2P MHC1005P471.JPG MHC1005P471.PNG

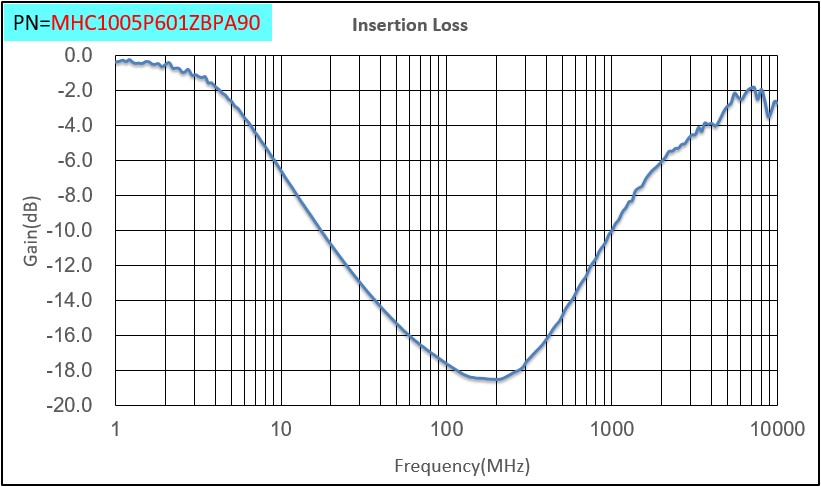

MHC1005P601ZBPA90 600 MHC1005P601.S2P MHC1005P601.JPG MHC1005P601.PNG

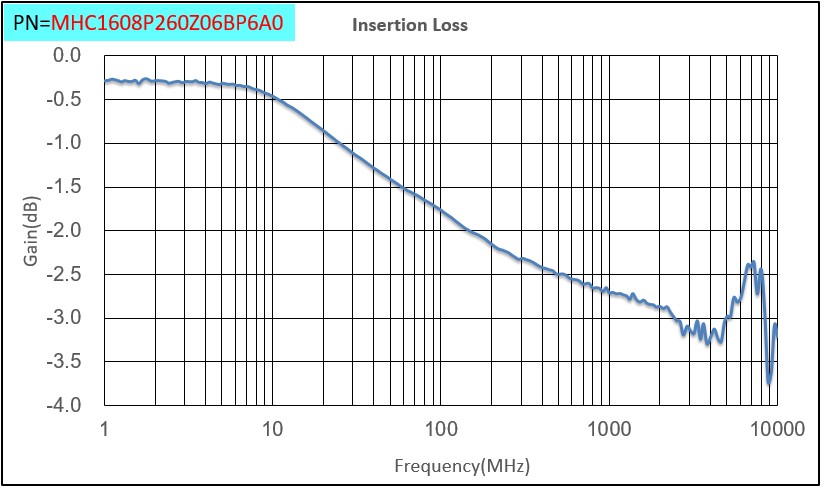

MHC1608_P MHC1608P260Z06BP6A0 26 MHC1608P260.S2P MHC1608P260.JPG MHC1608P260.PNG
MHC1608P300Z06BP5A0 30 MHC1608P300.S2P MHC1608P300.JPG MHC1608P300.PNG
MHC1608P700Z06BP3A5 70 MHC1608P700.S2P MHC1608P700.JPG MHC1608P700.PNG
MHC1608P101Z06BP3A0 100 MHC1608P101.S2P MHC1608P101.JPG MHC1608P101.PNG
MHC1608P121Z06BP3A0 120 MHC1608P121.S2P MHC1608P121.JPG MHC1608P121.PNG
MHC1608P221ZBP2A2 220 MHC1608P221.S2P MHC1608P221.JPG MHC1608P221.PNG
MHC1608P331ZBP1A7 330 MHC1608P331.S2P MHC1608P331.JPG MHC1608P331.PNG
MHC1608P471ZBP1A5 470 MHC1608P471.S2P MHC1608P471.JPG MHC1608P471.PNG
MHC1608P601ZBP1A3 600 MHC1608P601.S2P MHC1608P601.JPG MHC1608P601.PNG
