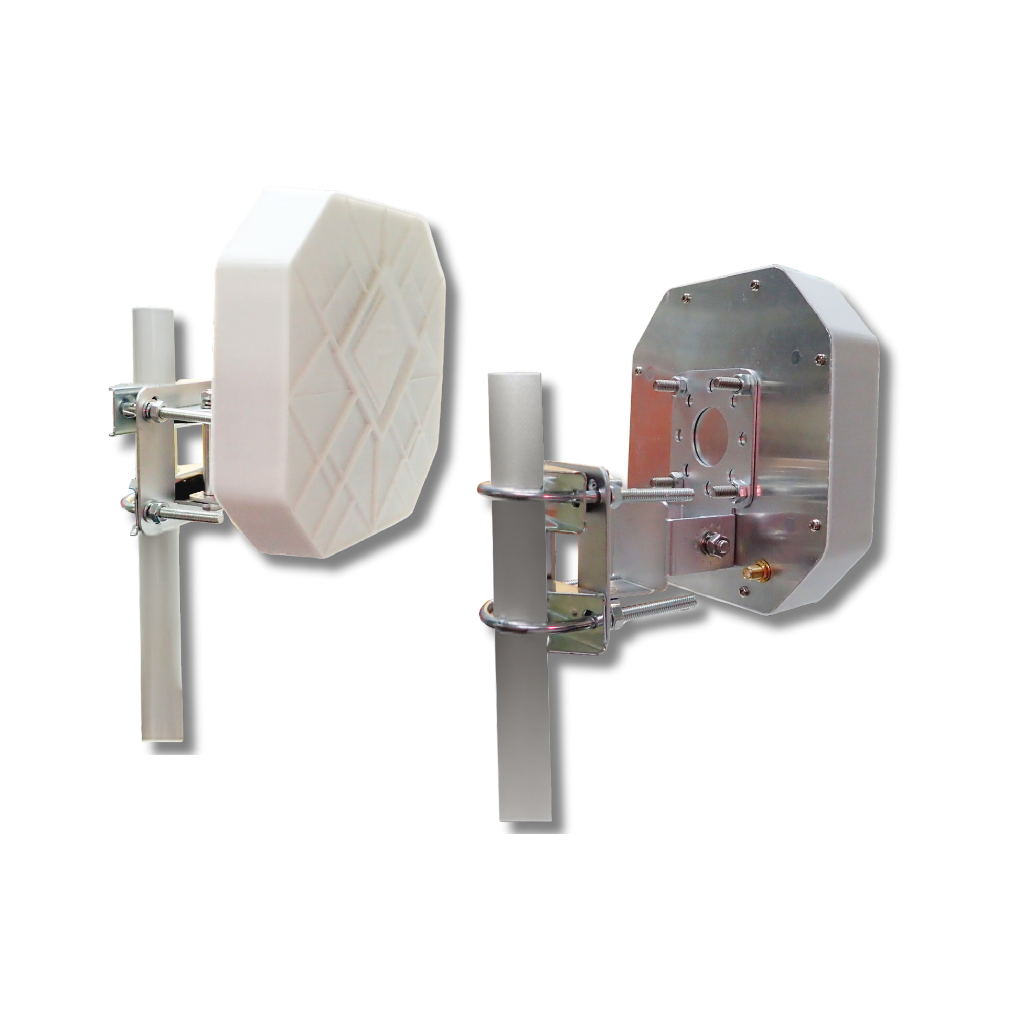

Electrical Specifications

Operating Frequency Band [MHz]

5150-5850

2400-2500/5150-5850

2400-2500/5150-5850/5925-7125

Polarization

Vertical (1x)

Vertical (2x) and Horizontal (2x)

Vertical (2x) and Horizontal (2x)

Radiation

Directional

Directional

Directional

Gain [dBi]

16.9

7/9

7/9/9

Electical Downtilt [degrees]

0 (fixed)

0 (fixed)

0 (fixed)

VSWR

≦ 2.0

≦ 2.0

≦ 2.0

Dimension
(Length x width x depth)

190X190X40mm

190x190x40mm

190X190X40mm

Features

1. Ideal for Making a Point-to-Point Link

2. High Gain, Supports all 5GHz Bands - 5150-5850 MHz for maximum flexibility

3. Inconspicuous, Low Profile Design

1. 802.11n MIMO operation

2. Low profile, wide band performance

1. Tri-Band Wi-Fi coverage including legacy Wi-Fi, Wi-Fi 6,
Wi-Fi 6E and Wi-Fi 7

2. High performance beam pattern
