For applications that do not require the particular reliability such as the general equipment | ||||||||||||||||||||||
 |
AEC-Q101 compliant product | ||||||||||||||||||||||
 |
AEC-Q200 compliant product | ||||||||||||||||||||||
|
RoHS Directive compliant product This product contain no restricted substances specified by RoHS Directive with more than maximum concentration value by weight in homogeneous material, except for cases falling under RoHS exemptions.
|
||||||||||||||||||||||
|
Compliant Halogen Free Requirements Br<900ppm Cl<900ppm Br+Cl<1500ppm |
||||||||||||||||||||||
 |
Leaded parts Lead content>1000ppm | ||||||||||||||||||||||
 |
UL compliant product |

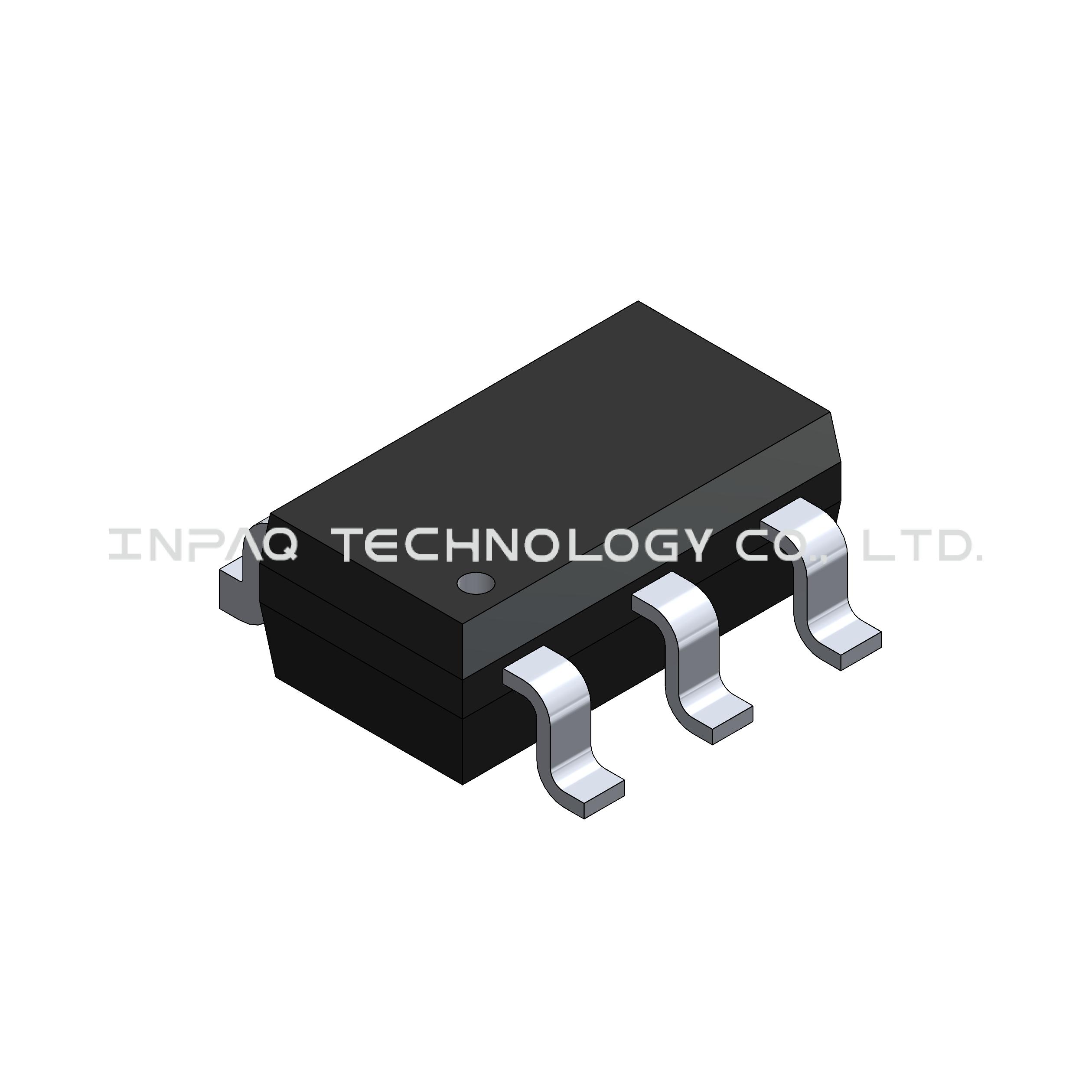

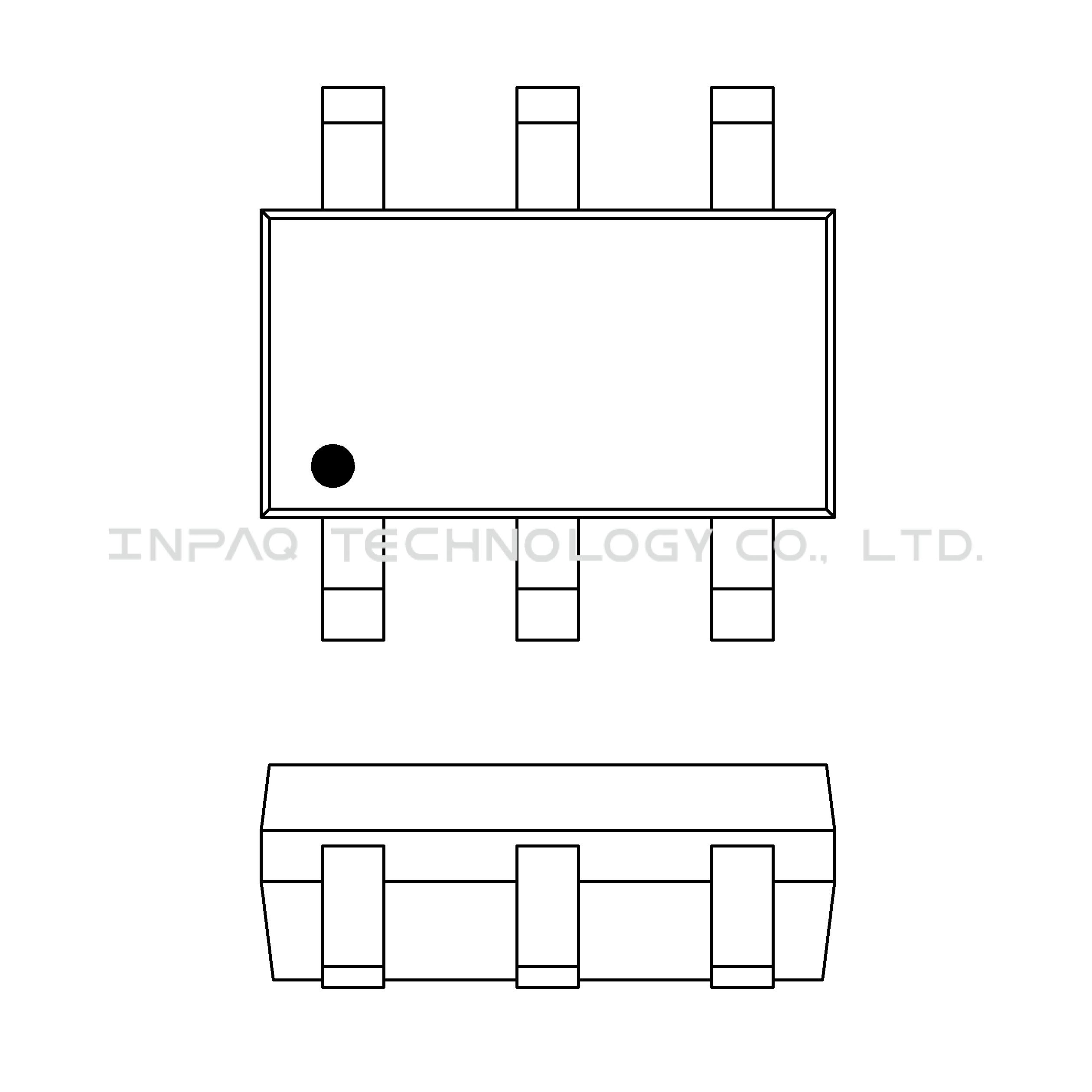

Appearance & Shape
Specification| L size(mm) | 2.9 |
| W size(mm) | 2.8 |
| T size(mm) | 1.4 |
| Size codeInch (mm) | SOT23 |
| Direction Bi/Uni | Uni Direction |
| Channel | 5 |
| VRWM (V) Max | 5 |
| Cp (pF) Typical | 0.6 |
| Cp (pF) Max | 0.8 |
| Ipp (A) | 3 |
| ESD Contact Discharge (V) | 16 |
| ESD Air Discharge (V) | 16 |
NoticesPacking| Packing Reel (Inch) | Carrier tape | Standard package quantity (KPCS) | Piece weight (gram) | MSL Level |
| 7 | Plastic type | 3 | 0.015 | 3 |
Characteristic Data
