WIP201210B-R33ML

圖標說明

For applications that do not require the particular reliability such as the general equipment

AEC-Q101 compliant product

AEC-Q200 compliant product

RoHS Directive compliant product
This product contain no restricted substances specified by RoHS Directive with more than maximum concentration value by weight in homogeneous material, except for cases falling under RoHS exemptions.

Restricted substances	Maximum concentration value
Lead	0.1%
Mercury	0.1%
Cadmium	0.01%
Hexavalent chromium	0.1%
Polybrominated biphenyls (PBB)	0.1%
Polybrominated diphenyl ethers (PBDE)	0.1%
Bis (2-ethylhexyl) phthalate (DEHP)	0.1%
Butyl benzyl phthalate (BBP)	0.1%
Dibutyl phthalate (DBP)	0.1%
Diisobutyl phthalate (DIBP)	0.1%

Compliant Halogen Free Requirements
Br<900ppm
Cl<900ppm
Br+Cl<1500ppm

Leaded parts Lead content>1000ppm

UL compliant product

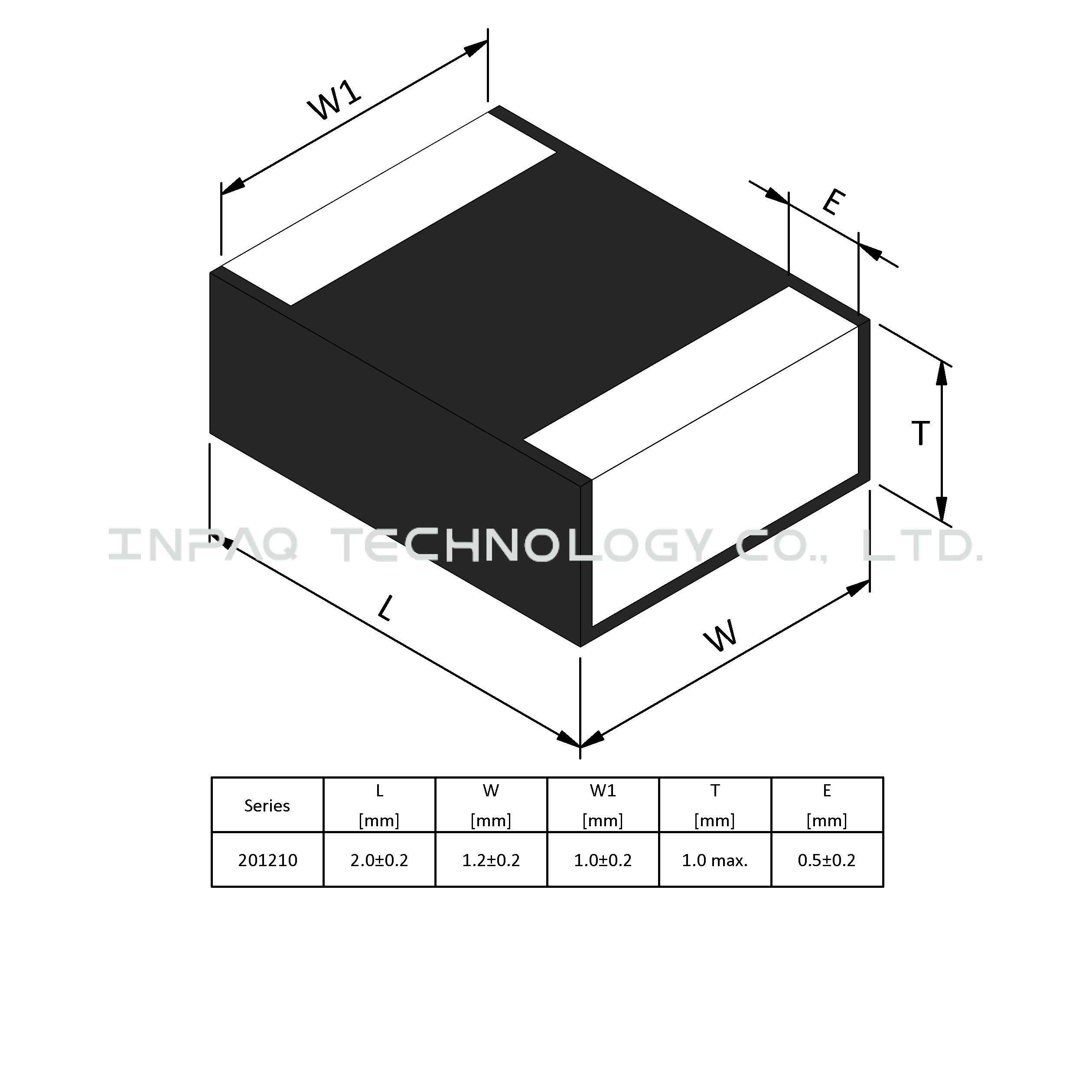

Appearance & Shape

Specification

L size(mm)	2.0±0.2
W size(mm)	1.2±0.2
T size(mm)	1.0 max.
Size code_Inch (mm)	0805/2012
Inductance(uH)	0.33
DCR(mΩ)Typ.	23
DCR(mΩ)Max.	28
Isat(A)Typ.	5.4
Isat(A)Max.	5
Irms(A)Typ.	4.8
Irms(A)Max.	4.3
QValue(Typ.)	25
SRF[MHz] Typ.	>120
Withstand voltage(DC)	20V DC
Operating Temperature range(includingself-temperaturerising)℃	-40℃ to +125℃

Notices

Notes
1. Customized design is available, please contact us.
2. All test referenced to 25℃ ambient.
3. Inductance tolerance +/- 20%.
4. Inductance is measured with Agilent® LCR meter 4285A (or equivalent) at 1MHz/1V.
5. DC resistance is measured with HIOKI® micro-ohm meter RM3542 or equivalent.
6. Isat：DC current (A) that will cause Li to drop approximately 30%.
7. Irms：DC current (A) that will cause an approximate ΔT of 40℃.
8. ACR definition: ACR=Rs@1MHz-DCR.
9. The rated current value is following either Isat (max.) or Irms (max), which value is lower one.
10. The part temperature (ambient + temp rise) should not exceed 125°C under worst case operating conditions. PCB land pattern, trace size - thick, circuit design and proximity to other components are all the factors will affect the temperature performance of the device. Therefore, it should be approved in application conditions and end product.
11. Rated voltage:20V DC (max.)

Packing

Packing Reel(Inch)	Standard package quantity(KPCS)	Piece weight(gram)	MSL Level
7	3	0.0145	1
