首頁 > 產品 > RF模块 > GNSS接收模块 > L1单频模块 (1216)

L1单频模块 (1216)

GNSS L1单频接收模块，除了可同时支持GPS、GLONASS、Galileo及BeiDou四大卫星系统，亦支持QZSS及SBAS，在全球均可达成定位需求。

多系统 GNSS 接收器将增加可见卫星并提高导航性能、快速捕获时间和位置精度。L1单频模块系列可接收多达47个卫星频道，提供快速的首次定位时间。该模块整合了低噪声放大器及高效滤波器，可增加接收能力及抗干扰性能。

模块采用1216尺寸，具邮票孔的设计方案，为客户提供结构紧凑、高性价比的GNSS接收模块。

天線頻譜方案

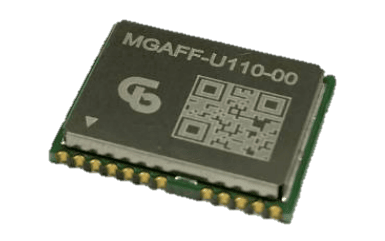

MGAFF-U110-00

MGAFF-U310-00

1. L1 band GNSS receiver

2. Support GPS, LONASS, Galileo, BeiDou, QZSS

3. Support Max. 47 channel

4. Time to First Fixed (TTFF)

5. Max 10Hz update rate

6. Integrate high rejection filter (SAW filter)

7. Integrate DC blocking in RFin port

8. Signal voltage supply (3.3V)

9. UART interface (1.8V level)

10. Ultra-low power consumption

11. ESD protection

12. Small and standard module package (1216)

13. Support SMD process

14. RoHS/REACH Compliance

15. CE/RED Certification (ETSI EN 303 413)

1. L1 band GNSS receiver

2. Support GPS, LONASS, Galileo, BeiDou, QZSS

3. Support Max. 47 channel

4. Time to First Fixed (TTFF)

5. Max 10Hz update rate

6. Integrate high rejection filter (SAW filter)

7. Integrate DC blocking in RFin port

8. Signal voltage supply (3.3V)

9. UART interface (1.8V level)

10. Ultra-low power consumption and with sleep mode function

11. ESD protection

12. Small and standard module package (1216)

13. Support SMD process

14. RoHS/REACH Compliance

15. CE/RED Certification (ETSI EN 303 413)
