INPAQ Qi MPP 2.0 Receiver(RX) Module

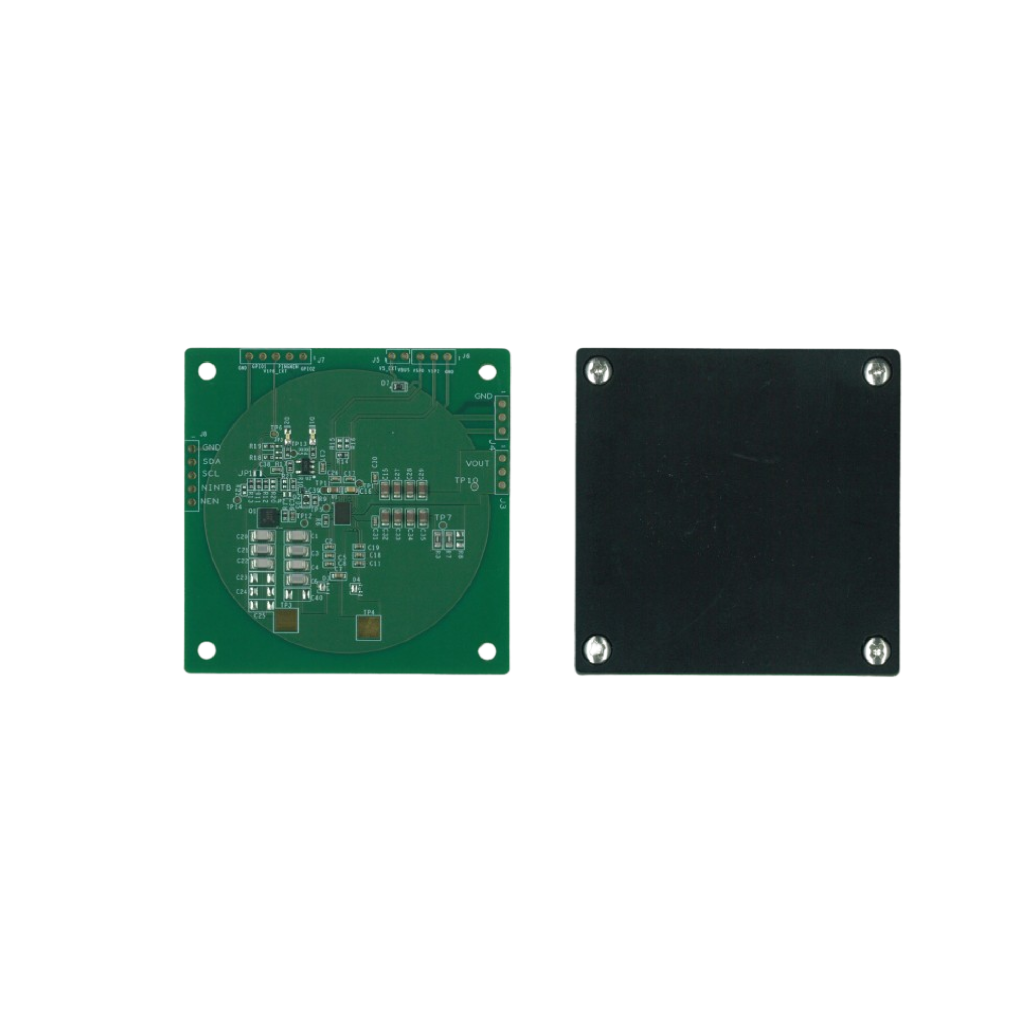

Qi MPP 2.0 Receiver(RX) Module

MPP 2.0 Receiver (RX) Module is a compatible development tool that simulates
the MPP RX architecture 15W. Its features are:

1: Compliant with qi 2.0 communication protocol (support reserved for Ver. 2.2)
2. According to customer needs, programmable output voltage setting(3.5-21V, implemented using I2C interface)
3. The transmitter can be used as a R&D and production tool, and can be read through the ATE system via I2C---Vout、Iout 、 TX Deliver power 、 Vrect 、 Freq)
4. Multi-function detection and protection, such as charging complete 、 OTP、OCP、OVP
5. Adopt IC solution synchronized with i-Phone --- STM
6. This module is exclusively authorized for research and development in Asia

天線頻譜方案
Category Part Series Features
RF Module>Wireless Charging Module>Qi MPP 2.0 Receiver(RX) Module WPC-W-A-RX-CFM-002 1. Power receive up to 15W
2. Over voltage/current/ temperature protection
3. Use QI 2.x inductive wireless standard communication protocol compliant
4. Support I2C interface for host controller
5. RoHS, Halogen-Free and Lead-Free Compliant
6. Use STMicroelectronics STWLC89JRO
