S-parameter Data Library

Z-R-X Simulation by S-parameter

Z-R-X Simulation by S-parameter is for Ferrite Beads and Ferrite Inductors, measured by using Network Analyzer, Agilent E5071B
The purpose is to estimate the impedance at frequency 3GHz ~ 8.5GHz.
How to use (PDF format)
Download：Z-R-X simulation by E5071B
Z-R-X Simulation is calculated by S21 Transmission Series Conversion Mode.
Select the conversion mode at the Z conversion menu.

Note:Z0 is fixed to 50 ohms in the calculations of the Impedance Parameter Display. The above information refer to Agilent’s web site : http://www.home.agilent.com/upload/cmc_upload/All/ZparaDisp_Manual.pdf

S-parameter of MCI by E5071C

1. Open it as following：

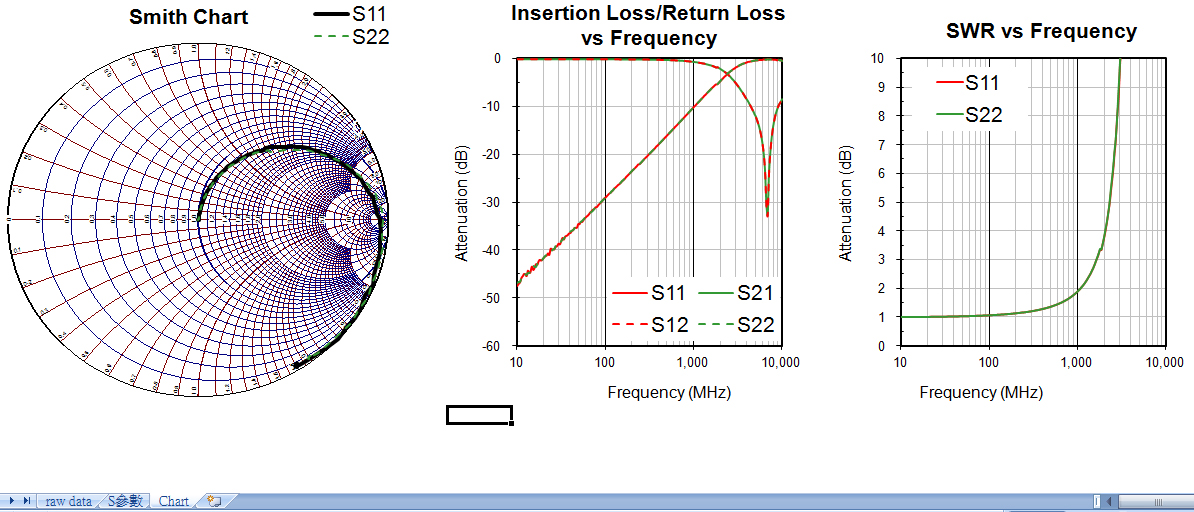

2. The worksheet ”Chart” show the S-parameter of MCI parts.
<< Example for MCI0603HQ-5N6 >>：
