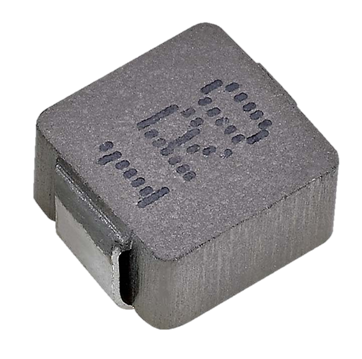

Inpaq Power inductor Metal Molding WMM series

Wire wound - Metal Molding Power inductor AIP/WMM

High-performance metal molding inductors (AIP/WMM) with inductance values ranging from 0.1uH to 150uH: size specifications from 4X4 ~17X17 mm, and can be customized according to customer needs. The market is applied to products such as Motherboards / Graphics cards / Industrial / Netcom.

天線頻譜方案

Part No	Series	Dimension			L0 [μH]	Rdc [mΩ]	Isat [A]	Irms [A]
Part No	Series	A	B	C	Initial Value	Max.	typ	typ
WMM0420PX-R10M	PX	4.45	4	1.8	0.1	4	22	12
WMM0420PX-R22M	PX	4.45	4	1.8	0.22	6.6	12.5	9
WMM0420PX-R33M	PX	4.45	4	1.8	0.33	13	12	8
WMM0420PX-R47M	PX	4.45	4	1.8	0.47	14	9.5	7
WMM0420PX-R56M	PX	4.45	4	1.8	0.56	16	10	6.5
WMM0420PX-R68M	PX	4.45	4	1.8	0.68	18	9	6
WMM0420PX-1R0M	PX	4.45	4	1.8	1	27	7	4.5
WMM0420PX-1R2M	PX	4.45	4	1.8	1.2	27	7	4.5
WMM0420PX-1R5M	PX	4.45	4	1.8	1.5	46	6	4
WMM0420PX-2R2M	PX	4.45	4	1.8	2.2	58	5	3
WMM0420PX-3R3M	PX	4.45	4	1.8	3.3	87	4	2.5
WMM0420PX-4R7M	PX	4.45	4	1.8	4.7	110	3.5	2.2
WMM0420PX-5R6M	PX	4.45	4	1.8	5.6	115	3.5	1.8
WMM0420PX-6R8M	PX	4.45	4	1.8	6.8	175	2.5	1.5
WMM0420PX-100M	PX	4.45	4	1.8	10	282	2.2	1.2
WMM0530PX-R20M	PX	5.4	5.2	3	0.2	3.9	14.5	18
WMM0530PX-R47M	PX	5.4	5.2	3	0.47	8.5	12	13.5
WMM0530PX-R68M	PX	5.4	5.2	3	0.68	12	14	8.5
WMM0530PX-1R0M	PX	5.4	5.2	3	1	14	11	7
WMM0530PX-1R2M	PX	5.4	5.2	3	1.2	16	11	6.5
WMM0530PX-1R5M	PX	5.4	5.2	3	1.5	25	8.5	6
WMM0530PX-2R2M	PX	5.4	5.2	3	2.2	29	7.5	5.5
WMM0530PX-3R3M	PX	5.4	5.2	3	3.3	38	6	5
WMM0530PX-4R7M	PX	5.4	5.2	3	4.7	60	5	3.5
WMM0530PX-6R8M	PX	5.4	5.2	3	6.8	90	4	3
WMM0530PX-100M	PX	5.4	5.2	3	10	125	3.5	2.5
WMM0630PX-R15M	PX	7.1	6.6	3	0.15	2.5	52	26
WMM0630PX-R22M	PX	7.1	6.6	3	0.22	2.8	40	23
WMM0630PX-R24M	PX	7.1	6.6	3	0.24	2.8	40	23
WMM0630PX-R33M	PX	7.1	6.6	3	0.33	3.9	30	20
WMM0630PX-R47M	PX	7.1	6.6	3	0.47	4.2	26	17.5
WMM0630PX-R56M	PX	7.1	6.6	3	0.56	5	25.5	16.5
WMM0630PX-R68M	PX	7.1	6.6	3	0.68	5.5	25	15.5
WMM0630PX-R82M	PX	7.1	6.6	3	0.82	8	20	13
WMM0630PX-1R0M	PX	7.1	6.6	3	1	10	20	11
WMM0630PX-1R5M	PX	7.1	6.6	3	1.5	15	16	9
WMM0630PX-2R2M	PX	7.1	6.6	3	2.2	20	12.0	8
WMM0630PX-3R3M	PX	7.1	6.6	3	3.3	30	10	6
WMM0630PX-4R7M	PX	7.1	6.6	3	4.7	40	7.0	5.5
WMM0630PX-5R6M	PX	7.1	6.6	3	5.6	44	6	5.5
WMM0630PX-6R8M	PX	7.1	6.6	3	6.8	60	6.5	4.5
WMM0630PX-8R2M	PX	7.1	6.6	3	8.2	60	6	4.5
WMM0630PX-100M	PX	7.1	6.6	3	10	68	5.5	4
WMM0630PX-150M	PX	7.1	6.6	3	15	125	3	3.5
WMM1040PX-R22M	PX	11.15	10	4	0.22	1	50	30
WMM1040PX-R36M	PX	11.15	10	4	0.36	1.2	40	34
WMM1040PX-R47M	PX	11.15	10	4	0.47	1.55	35	25
WMM1040PX-R56M	PX	11.15	10	4	0.56	1.8	32	25
WMM1040PX-R68M	PX	11.15	10	4	0.68	2.7	30	22
WMM1040PX-1R0M	PX	11.15	10	4	1	3.3	28	18
WMM1040PX-1R5M	PX	11.15	10	4	1.5	4.2	21	16
WMM1040PX-2R2M	PX	11.15	10	4	2.2	7	18	12
WMM1040PX-3R3M	PX	11.15	10	4	3.3	11.8	16	10
WMM1040PX-4R7M	PX	11.15	10	4	4.7	20	15	8.5
WMM1040PX-6R8M	PX	11.15	10	4	6.8	25	9	6.5
WMM1040PX-8R2M	PX	11.15	10	4	8.2	29	9	7
WMM1040PX-100M	PX	11.15	10	4	10	30	8.5	7.5
WMM1040PX-150M	PX	11.15	10	4	15	45	7	6.25
WMM1040PX-220M	PX	11.15	10	4	22	66	5.5	5
WMM1040PX-330M	PX	11.15	10	4	33	92	5	4.4
WMM1040PX-470M	PX	11.15	10	4	47	145	3.5	3.3
WMM1040PX-560M	PX	11.15	10	4	56	170	2.8	3.8
WMM1040PX-680M	PX	11.15	10	4	68	200	3	3.5
AIP0412MB-R47M	MB	4.4	4.2	1	0.47	19.6	7.4	6.4
AIP0412MB-R68M	MB	4.4	4.2	1	0.68	36	7.3	5.5
AIP0412MB-1R0M	MB	4.4	4.2	1	1	46.5	5.5	5
AIP0412MB-1R5M	MB	4.4	4.2	1	1.5	75	4.6	3.6
AIP0412MB-2R2M	MB	4.4	4.2	1	2.2	83	3.8	3.3
AIP0412MB-4R7M	MB	4.4	4.2	1	4.7	193	2.8	2
AIP0420MB-R47M	MB	4.4	4.2	1.8	0.47	9.5	9.5	11.5
AIP0420MB-1R0M	MB	4.4	4.2	1.8	1	20	8.7	7.5
AIP0420MB-1R5M	MB	4.4	4.2	1.8	1.5	36	7	5.8
AIP0420MB-2R2M	MB	4.4	4.2	1.8	2.2	42	6.5	5.5
AIP0420MB-3R3M	MB	4.4	4.2	1.8	3.3	64	5	3.7
AIP0420MB-4R7M	MB	4.4	4.2	1.8	4.7	89	4.6	3.5
AIP0420MB-6R8M	MB	4.4	4.2	1.8	6.8	148	3.3	2.6
AIP0518MB-R47M	MB	5.4	5.2	1.6	0.47	8.5	16	11
AIP0518MB-R68M	MB	5.4	5.2	1.6	0.68	13.8	13	9
AIP0518MB-1R0M	MB	5.4	5.2	1.6	1	17	10	8.5
AIP0518MB-1R5M	MB	5.4	5.2	1.6	1.5	28	9	6.2
AIP0518MB-2R2M	MB	5.4	5.2	1.6	2.2	35	7	5.2
AIP0518MB-3R3M	MB	5.4	5.2	1.6	3.3	52	5.5	4.7
AIP0518MB-4R7M	MB	5.4	5.2	1.6	4.7	81	4.5	3.5
AIP0518MB-6R8M	MB	5.4	5.2	1.6	6.8	125	3.6	2.9
AIP0518MB-100M	MB	5.4	5.2	1.6	10	154	3.3	2.5
AIP0530MB-R10M	MB	5.4	5.2	2.8	0.1	2.3	38	28
AIP0530MB-R33M	MB	5.4	5.2	2.8	0.33	6.1	15.5	14.2
AIP0530MB-R47M	MB	5.4	5.2	2.8	0.47	8	14	12.2
AIP0530MB-R68M	MB	5.4	5.2	2.8	0.68	9.2	11.5	11
AIP0530MB-1R0M	MB	5.4	5.2	2.8	1	12	10	9.8
AIP0530MB-1R5M	MB	5.4	5.2	2.8	2.2	29	8	6.3
AIP0530MB-2R2M	MB	5.4	5.2	2.8	3.3	38	6	5.4
AIP0530MB-4R7M	MB	5.4	5.2	2.8	6.8	115	3.7	3.2
AIP0615MB-R47M	MB	7	6.6	1.3	0.47	8.5	16	10
AIP0615MB-R56M	MB	7	6.6	1.3	0.56	11	14	9
AIP0615MB-R68M	MB	7	6.6	1.3	0.68	12	12	8.5
AIP0615MB-R82M	MB	7	6.6	1.3	0.82	17	10	8
AIP0615MB-1R0M	MB	7	6.6	1.3	1	21	9	6
AIP0615MB-2R2M	MB	7	6.6	1.3	2.2	54	7	3.8
AIP0615MB-3R3M	MB	7	6.6	1.3	3.3	63	5.5	3.5
AIP0615MB-4R7M	MB	7	6.6	1.3	4.7	85	5	3.2
AIP0615MB-6R8M	MB	7	6.6	1.3	6.8	135	4	2.5
AIP0615MB-100M	MB	7	6.6	1.3	10	175	3	2
AIP0618MB-R22M	MB	7	6.6	1.6	0.22	4.9	29	18
AIP0618MB-R47M	MB	7	6.6	1.6	0.47	8.2	19	12.5
AIP0618MB-R68M	MB	7	6.6	1.6	0.68	10.4	13	9.5
AIP0618MB-1R5M	MB	7	6.6	1.6	1.5	26	10	6.5
AIP0618MB-2R2M	MB	7	6.6	1.6	2.2	28.5	7.3	6
AIP0618MB-4R7M	MB	7	6.6	1.6	4.7	67	5.2	3.9
AIP0618MB-6R8M	MB	7	6.6	1.6	6.8	109	3.9	2.9
AIP0618MB-100M	MB	7	6.6	1.6	10	153	2.4	2.5
AIP0624MB-R22M	MB	7	6.6	2.2	0.22	3	34	21
AIP0624MB-R33M	MB	7	6.6	2.2	0.33	4.1	24.5	18
AIP0624MB-R47M	MB	7	6.6	2.2	0.47	5.1	22	15
AIP0624MB-R56M	MB	7	6.6	2.2	0.56	6.5	17	13
AIP0624MB-R68M	MB	7	6.6	2.2	0.68	7	16	12
AIP0624MB-1R0M	MB	7	6.6	2.2	1	13.5	15	9
AIP0624MB-1R5M	MB	7	6.6	2.2	1.5	20	13.5	8.2
AIP0624MB-2R2M	MB	7	6.6	2.2	2.2	28	10	7
AIP0624MB-3R3M	MB	7	6.6	2.2	3.3	39	8	5.5
AIP0624MB-4R7M	MB	7	6.6	2.2	4.7	50	6.5	5
AIP0624MB-6R8M	MB	7	6.6	2.2	6.8	70	6	4
AIP0624MB-100M	MB	7	6.6	2.2	10	101	4	3.1
AIP0624MB-150M	MB	7	6.6	2.2	15	160	3.3	2.5
AIP0624MB-220M	MB	7	6.6	2.2	22	230	2.5	2
AIP0630MB-R15M	MB	7	6.6	2.8	0.15	2.4	41	30
AIP0630MB-R22M	MB	7	6.6	2.8	0.22	3	35	25
AIP0630MB-R33M	MB	7	6.6	2.8	0.33	3.3	26	22
AIP0630MB-R47M	MB	7	6.6	2.8	0.47	4.1	21	18
AIP0630MB-R56M	MB	7	6.6	2.8	0.56	4.5	20	16.5
AIP0630MB-R68M	MB	7	6.6	2.8	0.68	5.3	19	16
AIP0630MB-R82M	MB	7	6.6	2.8	0.82	6	17	14
AIP0630MB-1R0M	MB	7	6.6	2.8	1	7.25	16.5	13
AIP0630MB-2R2M	MB	7	6.6	2.8	2.2	15	12.5	8.5
AIP0630MB-3R3M	MB	7	6.6	2.8	3.3	22	9.6	7.2
AIP0630MB-4R7M	MB	7	6.6	2.8	4.7	33	6.55	6
AIP0630MB-5R6M	MB	7	6.6	2.8	5.6	42	6.35	5.7
AIP0630MB-6R8M	MB	7	6.6	2.8	6.8	48	6.3	4.7
AIP0630MB-8R2M	MB	7	6.6	2.8	8.2	60	6.05	4.5
AIP0630MB-100M	MB	7	6.6	2.8	10	68	5.6	4
AIP0630MB-150M	MB	7	6.6	2.8	15	150	3.8	2.7
AIP0630MB-220M	MB	7	6.6	2.8	22	200	3.1	2.3
AIP0630MB-330M	MB	7	6.6	2.8	33	284	2.3	2.1
AIP0640MB-R68M	MB	7	6.6	3.8	0.68	4.8	19	17
AIP0640MB-1R0M	MB	7	6.6	3.8	1	6.6	16	13.5
AIP0640MB-1R5M	MB	7	6.6	3.8	1.5	10	12.5	12.4
AIP0640MB-2R2M	MB	7	6.6	3.8	2.2	14	11	10
AIP0640MB-3R3M	MB	7	6.6	3.8	3.3	20	9.5	8.5
AIP0640MB-4R7M	MB	7	6.6	3.8	4.7	30	9	6.5
AIP0640MB-6R8M	MB	7	6.6	3.8	6.8	45	6.5	5.5
AIP0640MB-100M	MB	7	6.6	3.8	10	65	6	4.8
AIP0640MB-150M	MB	7	6.6	3.8	15	95	4.5	3.7
AIP0640MB-220M	MB	7	6.6	3.8	22	125	4	3.3
AIP0640MB-330M	MB	7	6.6	3.8	33	240	3	2.2
AIP0640MB-470M	MB	7	6.6	3.8	47	320	2.5	1.8
AIP0650MB-R68M	MB	7	6.6	4.8	0.68	4.2	17	18.2
AIP0650MB-1R0M	MB	7	6.6	4.8	1	6.4	16.8	13.2
AIP0650MB-1R5M	MB	7	6.6	4.8	1.5	7.5	12.7	12.3
AIP0650MB-2R2M	MB	7	6.6	4.8	2.2	11.8	12.1	11
AIP0650MB-3R3M	MB	7	6.6	4.8	3.3	18.5	9	9
AIP0650MB-4R7M	MB	7	6.6	4.8	4.7	24	8	6.7
AIP0650MB-6R8M	MB	7	6.6	4.8	6.8	40	7.3	5.5
AIP0650MB-100M	MB	7	6.6	4.8	10	54	5.3	4.7
AIP1030MB-R22M	MB	11.5	10	2.8	0.22	1.2	50	33
AIP1030MB-R33M	MB	11.5	10	2.8	0.33	1.6	32	23
AIP1030MB-R36M	MB	11.5	10	2.8	0.36	1.6	28	23
AIP1030MB-R47M	MB	11.5	10	2.8	0.47	2.5	26	22
AIP1030MB-R82M	MB	11.5	10	2.8	0.82	3.7	23	18
AIP1030MB-1R0M	MB	11.5	10	2.8	1	6	21	15
AIP1030MB-2R2M	MB	11.5	10	2.8	2.2	9	14	11
AIP1030MB-3R3M	MB	11.5	10	2.8	3.3	16	12	9
AIP1030MB-4R7M	MB	11.5	10	2.8	4.7	24	10	7
AIP1030MB-8R2M	MB	11.5	10	2.8	8.2	45	7	5
AIP1030MB-330M	MB	11.5	10	2.8	33	160	4	2.6
AIP1040MB-R15M	MB	11.5	10	3.8	0.15	0.55	76	50
AIP1040MB-R22M	MB	11.5	10	3.8	0.22	0.93	63	36
AIP1040MB-R36M	MB	11.5	10	3.8	0.36	1.18	51	33
AIP1040MB-R47M	MB	11.5	10	3.8	0.47	1.5	46	32
AIP1040MB-R56M	MB	11.5	10	3.8	0.56	1.8	33.5	25
AIP1040MB-1R0M	MB	11.5	10	3.8	1	3.3	29	19
AIP1040MB-1R5M	MB	11.5	10	3.8	1.5	4.2	22	16
AIP1040MB-2R2M	MB	11.5	10	3.8	2.2	7	20	12
AIP1040MB-3R3M	MB	11.5	10	3.8	3.3	12	16.2	10
AIP1040MB-4R7M	MB	11.5	10	3.8	4.7	20	15.2	8.5
AIP1040MB-5R6M	MB	11.5	10	3.8	5.6	23	14.1	8
AIP1040MB-6R8M	MB	11.5	10	3.8	6.8	24.5	12	7.8
AIP1040MB-8R2M	MB	11.5	10	3.8	8.2	26.5	9	7.6
AIP1040MB-100M	MB	11.5	10	3.8	10	30	8.6	7.5
AIP1040MB-150M	MB	11.5	10	3.8	15	45	8	6.3
AIP1040MB-220M	MB	11.5	10	3.8	22	66	6.2	5
AIP1040MB-330M	MB	11.5	10	3.8	33	91	5.5	4.4
AIP1050MB-R22M	MB	11.5	10	4.8	0.22	0.8	65	37
AIP1050MB-1R0M	MB	11.5	10	4.8	1	3	30	23
AIP1050MB-1R5M	MB	11.5	10	4.8	1.5	3.8	25	21
AIP1050MB-2R2M	MB	11.5	10	4.8	2.2	6	19	15
AIP1050MB-3R3M	MB	11.5	10	4.8	3.3	10	16	13
AIP1050MB-4R7M	MB	11.5	10	4.8	4.7	14	15	11
AIP1050MB-5R6M	MB	11.5	10	4.8	5.6	17	14	9.5
AIP1050MB-6R8M	MB	11.5	10	4.8	6.8	18.5	14	9
AIP1050MB-100M	MB	11.5	10	4.8	10	28	10	8
AIP1050MB-150M	MB	11.5	10	4.8	15	42	7.5	6.5
AIP1050MB-220M	MB	11.5	10	4.8	22	50	6	5.5
AIP1050MB-330M	MB	11.5	10	4.8	33	86	5.2	4.8
AIP1050MB-470M	MB	11.5	10	4.8	47	127	4.5	3.7
AIP1050MB-101M	MB	11.5	10	4.8	100	290	2.8	2.1
AIP1250MB-R68M	MB	13.45	12.6	4.8	0.68	1.55	54	35
AIP1250MB-1R0M	MB	13.45	12.6	4.8	1	2.2	36	30
AIP1250MB-2R2M	MB	13.45	12.6	4.8	2.2	5	25	20.5
AIP1250MB-3R3M	MB	13.45	12.6	4.8	3.3	7	22.5	15.5
AIP1250MB-4R7M	MB	13.45	12.6	4.8	4.7	10.3	17.2	13
AIP1250MB-100M	MB	13.45	12.6	4.8	10	22	13	9
AIP1250MB-150M	MB	13.45	12.6	4.8	15	35	8	7
AIP1250MB-220M	MB	13.45	12.6	4.8	22	58	6.6	5.5
AIP1260MB-8R2M	MB	13.45	12.6	5.8	8.2	16	16	11
AIP1260MB-100M	MB	13.45	12.6	5.8	10	20.7	13.5	10
AIP1260MB-120M	MB	13.45	12.6	5.8	12	23	13	9
AIP1260MB-150M	MB	13.45	12.6	5.8	15	27.5	10	8
AIP1260MB-220M	MB	13.45	12.6	5.8	22	39	7.6	7
AIP1260MB-330M	MB	13.45	12.6	5.8	33	70	6.1	5
AIP1260MB-470M	MB	13.45	12.6	5.8	47	88	5.7	4.5
AIP1260MB-680M	MB	13.45	12.6	5.8	68	140	5.5	3.5
AIP1260MB-101M	MB	13.45	12.6	5.8	100	198	4	3
AIP1260MB-151M	MB	13.45	12.6	5.8	150	347	3	2.5
AIP1265MB-4R7M	MB	13.45	12.6	6.5	4.7	8.5	24	16
AIP1265MB-5R6M	MB	13.45	12.6	6.5	5.6	10.5	22.5	14
AIP1265MB-6R8M	MB	13.45	12.6	6.5	6.8	12	19	13
AIP1265MB-8R2M	MB	13.45	12.6	6.5	8.2	14	16	12
AIP1265MB-100M	MB	13.45	12.6	6.5	10	16.5	15	11
AIP1265MB-150M	MB	13.45	12.6	6.5	15	26	11	9.5
AIP1265MB-220M	MB	13.45	12.6	6.5	22	36	9	8
AIP1265MB-330M	MB	13.45	12.6	6.5	33	65	8	6.5
AIP1265MB-470M	MB	13.45	12.6	6.5	47	70	6.8	5.5
AIP1265MB-680M	MB	13.45	12.6	6.5	68	120	5.2	4.8
AIP1265MB-820M	MB	13.45	12.6	6.5	82	135	4.5	4
AIP1265MB-101M	MB	13.45	12.6	6.5	100	170	4	3.5
AIP1770MB-2R2M	MB	17.15	17.15	7	2.2	2.5	34	29
AIP1770MB-3R3M	MB	17.15	17.15	7	3.3	3.95	30	24
AIP1770MB-4R7M	MB	17.15	17.15	7	4.7	4.75	24	21
AIP1770MB-6R8M	MB	17.15	17.15	7	6.8	7.5	22	17
AIP1770MB-8R2M	MB	17.15	17.15	7	8.2	8.7	20	13
AIP1770MB-100M	MB	17.15	17.15	7	10	9.9	19	12
AIP1770MB-150M	MB	17.15	17.15	7	15	17	14.5	11
AIP1770MB-220M	MB	17.15	17.15	7	22	23	11.5	8.5
AIP1770MB-330M	MB	17.15	17.15	7	33	37	10	8
AIP1770MB-470M	MB	17.15	17.15	7	47	47	7.5	6
AIP1770MB-680M	MB	17.15	17.15	7	68	85	6.5	5.2
AIP1770MB-101M	MB	17.15	17.15	7	100	130	5	3.7
AIP0630GX-1R0MPB	GX	7.2	6.5	3	1	5.95	23	18
AIP0630GX-1R8MPB	GX	7.2	6.5	3	1.8	9.5	18.2	13
AIP0630GX-2R2MPB	GX	7.2	6.5	3	2.2	13.1	15.9	10.4
AIP0630GX-3R3MPB	GX	7.2	6.5	3	3.3	19.2	12.2	8.4
AIP0630GX-4R7MPB	GX	7.2	6.5	3	4.7	29.3	12.6	7.1
AIP0630GX-6R8MPB	GX	7.2	6.5	3	6.8	44.5	10.8	5.5
AIP0630GX-100MPB	GX	7.2	6.5	3	10	62	6.5	4.9
AIP0630GX-220MPB	GX	7.2	6.5	3	22	134	5	3.5

TOP

Step1 Your contact(*Required)
* * *
* * *

Step2 Inquiry Contents(Required)

請輸入驗證碼

Products

Search Inpaq

Wire wound - Metal Molding Power inductor AIP/WMM
