Inpaq Transient Voltage Suppressor TVS Package Size series

ESD TVS

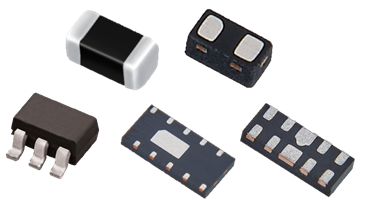

INPAQ provides ESD diode and ESD diode array series, designed for ESD protection . We provide INPAQ’s patented package "CSP with Overcoating", with small size and high performance features, size EIA 0201/0402 size, there are also DFN / SOD Other package specifications. Widely used in communications / computer / household products. A variety of types and different capacitance options are available where electrostatic protection is required (speakers/microphones/buttons/switches/digital signal lines USB2.0/3.0/3.1 Type C, DVI, HDMI, DisplayPort, etc.).
Spectrum

Package TVS No. Direction Chanel VRWM(V)
typ.
Cp(pF)
typ.
Ipp(A) ESD (kV)
contact/air
CSP0201 TVL0201 01 3V AA0 Bi 1 3.3 10 7 20/20
CSP0201 TVL0201 01 5V AA0 Bi 1 5 5 6 15/15
CSP0201 TVN0201 01 5V AA0 Bi 1 5 15 8 20/20
CSP0201 TVL020101AB0 Bi 1 5 3 4 8/15
CSP0201 TVN020101AB0 Bi 1 5 20 4 8/15
CSP0402 TVL040201AB1 Bi 1 5 6 4 8/15
CSP0402 TVH040201AB1 Bi 1 5 35 4 8/15
CSP0402 TVN040201AB1 Bi 1 5 50 4 8/15
DFN0603 TVL5VB1-DFN0603-2L Bi 1 5 10 5 25/25
DFN0603 TVL3V3B1-DFN0603-2L Bi 1 3.3 10 7 20/25
DFN0603 TVW5VB1-DFN0603-2L Bi 1 5 0.24 4 15/15
DFN0603 TVW3V3B1-DFN0603-2L Bi 1 3.3 1 12 30/30
DFN0603 TVN5VB1-DFN0603-2L Bi 1 5 12 4 30/30
DFN0603 TVL12VB1-DFN0603-2L Bi 1 12 4 4 15/15
DFN0603 TVC5VB1-DFN0603-2L Bi 1 5 0.28 2.7 12/16
DFN0603 TVC3V3B1S-DFN0603-2L Bi 1 3.3 0.2 9 20/20
DFN0603 TVC5VB1S-DFN0603-2L Bi 1 5 0.2 9 20/20
DFN0603 TVC1V8B1S-DFN0603-2L Bi 1 1.8 0.2 9 20/20
DFN0603 TVW5VB1-DFN0603-2L Bi 1 5 0.25 6 15/15
DFN0603 TVW24VB1S-DFN0603-2L Bi 1 24 0.4 4 15/15
DFN1006 TVW3V3B1-DFN1006-2L Bi 1 3.3 0.7 7 20/20
DFN1006 TVW5VB1S-DFN1006-2L Bi 1 5 0.28 10 25/25
DFN1006 TVW5VB1A-DFN1006-2L Bi 1 5 0.3 4 25/25
DFN1006 TVU FB02 01 AD0 Uni 1 5 0.5 5 10/15
DFN1006 TVW5VU1A-DFN1006-2L Uni 1 5 0.5 4 20/20
DFN1006 TVU FB02 01 AC0 Bi 1 5 0.5 2.5 8/15
DFN1006 TVW5VB1-DFN1006-2L Bi 1 5 0.3 2.7 12/16
DFN1006 TVU18VB1-DFN1006-2L Bi 1 18 0.5 1 10/15
DFN1006 TVU12VB1-DFN1006-2L Bi 1 12 0.55 1.5 12/16
DFN1006 TVW15VB1-DFN1006-2L Bi 1 15 0.35 40 8/15
DFN1006 TVW24VB1S-DFN1006-2L Bi 1 24 0.4 4 15/15
DFN1006 TVN24VB1-DFN1006-2L Bi 1 24 16 6 25/25
DFN1006 TVN7VB1-DFN1006-2L Bi 1 7 10 5 25/25
DFN1006 TVN12VB1-DFN1006-2L Bi 1 12 25 7.5 30/30
DFN1610 TVM5VU1-DFN1610-2L Uni 1 5 600 80 30/30
DFN1610 TVM12VU1-DFN1610-2L Uni 1 12 380 45 30/30
DFN1610 TVM20VU1-DFN1610-2L Uni 1 20 165 25 30/30
DFN1610 TVM4V5B1-DFN1610-2L Bi 1 4.5 1100 240 30/30
DFN1610 TVM12V5U1-DFN1610-2L Uni 1 12.5 680 100 30/30
DFN2020-3L TVSS 4V5 U1-DFN2020-3L uni 1 4.5 2400 260 30/30
DFN2020-3L TVSS 12V U1-DFN2020-3L uni 1 12 900 150 30/30
DFN2020-3L TVSS7VU1-DFN2020-3L uni 1 7 1500 250 30/30
FBP1006 TVM5VU1-FBP1006-2L Uni 1 5 95 13 25/25
FBP1006 TVM7VU1-FBP1006-2L Uni 1 7 70 10 15/20
FBP1006 TVM12VU1-FBP1006-2L Uni 1 12 48 9 15/20
FBP1006 TVL3V3B1-FBP1006-2L Bi 1 3.3 15 7 15/20
FBP1006 TVL5VB1-FBP1006-2L Bi 1 5 12 4 15/20
FBP1006 TVU5VB1-FBP1006-2L Bi 1 5 0.9 4 8/15
FBP1006 TVU5VU1-FBP1006-2L Uni 1 5 0.5 5 15/15
FBP1006 TVL7VB1-FBP1006-2L Bi 1 7 9 5 25/25
SOD323 TVW3V3B1-SOD323-2L Bi 1 3.3 0.6 25 30/30
SOD323 TVW5VB1-SOD323-2L Bi 1 5 0.6 20 30/30
SOD323 TVW12VB1-SOD323-2L Bi 1 12 0.6 12 30/30
SOD323 TVW24VB1-SOD323-2L Bi 1 24 0.6 6 30/30
SOD323 TVL5VB1-SOD323-2L Bi 1 5 2 30 25/25
SOD323 TVM3V3U1-SOD323-2L Uni 1 3.3 120 16 25/25
SOD323 TVM5VU1-SOD323-2L Uni 1 5 95 13 25/25
SOD323 TVH12VU1-SOD323-2L Uni 1 12 45 9 25/25
SOD323 TVM12VU1-SOD323-2L Uni 1 12 100 30 25/25
SOD323 TVM12VU1A-SOD323-2L Uni 1 12 300 50 25/25
SOD323 TVL15VU1-SOD323-2L Uni 1 15 2 10 25/25
SOD323 TVL3V3B1-SOD323-2L Bi 1 3.3 2 18 25/25
SOD323 TVN 5V B1-SOD323-2L Bi 1 5 12 5 25/25
SOD323 TVH 5V B1-SOD323-2L Bi 1 5 60 28 25/25
SOD323 TVM5VB1-SOD323-2L Bi 1 5 120 30 25/25
SOD323 TVL15VB1-SOD323-2L Bi 1 15 2 10 25/25
SOD323F TVSS4V5U1-SOD323F-2L uni 1 4.5 700 100 30/30
SOD323F TVSS 7V U1-SOD323F-2L uni 1 7 485 100 30/30
SOD323F TVSS 12V U1-SOD323F-2L uni 1 12 265 50 30/30
SOD523 TVL3V3B1-SOD523-2L Bi 1 3.3 15 7 25/25
SOD523 TVM3V3U1-SOD523-2L Uni 1 3.3 120 16 15/20
SOD523 TVM5VU1-SOD523-2L Uni 1 5 95 13 25/25
SOD523 TVM7VU1-SOD523-2L Uni 1 7 70 10 25/25
SOD523 TVN12VU1-SOD523-2L Uni 1 12 45 9 25/25
SOD523 TVH15VU1-SOD523-2L Uni 1 15 48 9.5 25/25
SOD523 TVH24VU1-SOD523-2L Uni 1 24 36 7.5 15/20
SOD523 TVN 3V3 B1-SOD523-2L Bi 1 3.3 15 7 25/25
SOD523 TVN S523 01AB0 Bi 1 5 12 5 25/25
DFN1006-3L TVW5VB2-DFN1006-3L Bi 2 5 0.8 11 30/30
DFN1006-3L TVU5VU2S-DFN1006-3L Uni 2 5 0.7 4 8/15
DFN1210-6L TVU3V3U2S-DFN1210-6L Uni 2 3.3 0.22 4 10/15
DFN1610-6L TVU5VU2-DFN1610-6L Uni 2 5 0.6 4 20/20
SOT143-4L TVL S143 02 AC0 Uni 2 5 0.8 5 10/15
SOT23-3L TVL5VB2S-SOT23-3L Bi 2 5 1 12 30/30
SOT523-3L TVW5VB2-SOT523-3L Bi 2 5 0.5 4 15/15
SOT523-3L TVN ST523 02 AB0 Uni 2 5 10.5 5 25/25
DFN2510-10L TVU5VU4S-DFN2510-10L Uni 4 5 0.48 5 12/16
DFN2510-10L TVU DF10 04S AD0 Uni 4 5 0.48 5 12/16
DFN2510-10L TVW DF10 04 AD0 Uni 4 5 0.5 5 8/15
DFN2510-10L TVW DF10 04 AD1 Uni 4 3.3 0.5 5 8/15
DFN2510-10L TVU 3V3U4S-DFN2510-10L Uni 4 3.3 0.44 6 16/16
DFN2510-10L TVU3V3U4SA-DFN2510-10L Uni 4 3.3 0.25 3 8/15
DFN2510-10L TVU1V8U4S-DFN2510-10L Uni 4 1.8 0.28 6 15/15
DFN4120-10L TVU5VB6-DFN4120-10L Bi 4 5 0.2 3 20/20
SOT23-6L TVU5VU4-SOT23-6L Uni 4 5 0.6 3 20/20
SOT23-6L TVL ST23 04AD0 Uni 4 5 1 5.5 8/15
SOT23-6L TVC5VU4D-SOT23-6L Uni 4 5 1.2 8 30/30
SOT23-6L TVL2V5U5S -SOT23-6L Uni 4 2.5 2.1 20 30/30
SOT563-6L TVH5VU5-SOT563-6L Uni 6 5 30 5 15/15
DFN5515-18L TVU3V3B8-DFN5515-18L Bi 8 3.3 0.2 6 16/25
