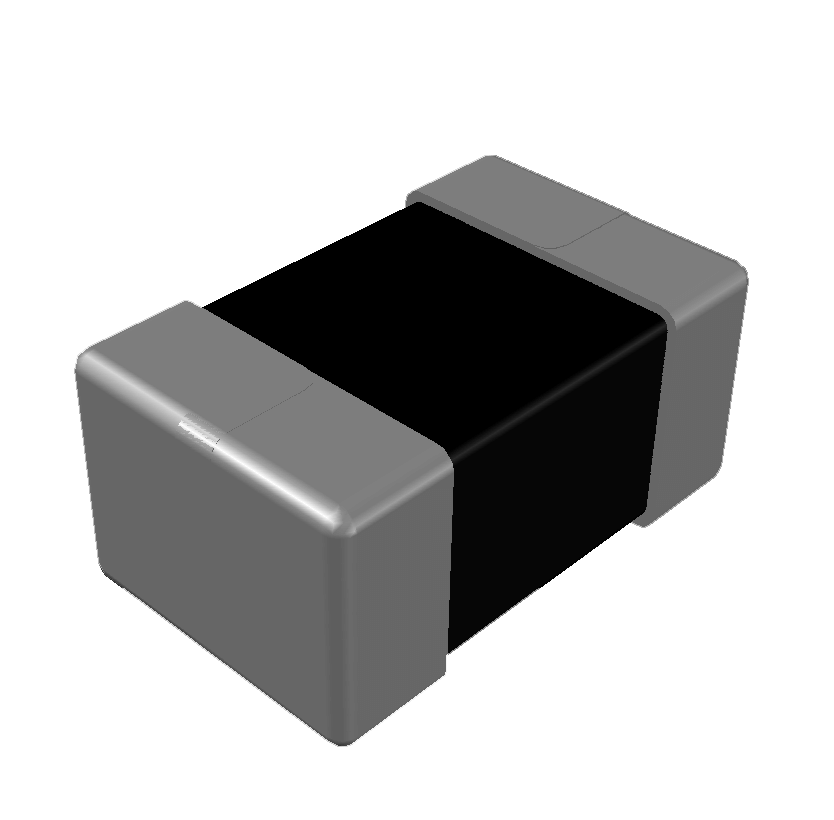

Inpaq  Chip Ferrite Bead for GHz Range MGB series

Chip Ferrite Bead for GHz Range

MGB
Multilayer Chip Bead Series use multilayer ferrite design/process for EMI and noise filtering for general use, high-speed signal lines, power supplies, power supplies with low DC resistance type.

The MGB series ferrite bead generates high impedance at high frequency. Effectively filtering capability over a wide range of frequency ,an impedance range of 600~1000ohms. Available in case sizes EIAJ: 0402/1005.
Spectrum
Picture Description Series Size (EIA) Size (EIAJ) SPEC Impedance(Ω)± 25% DCR(Ω) Max. Rated Current (mA) Application
  GHz Range MGB series  MGB  0201 0603 MGB 0603  25 ~ 1500 0.26 ~ 3.10 120 ~600  Video / USB / DVD / Baseband / Chipset / Microphone / Speaker / SIM card / Camera / Pannel / Storage / A
0402 1005 MGB 1005  600 ~ 1800   0.85 ~ 2.20 300 ~ 200
