Common Mode Filter

Inpaq is competitive emi filter manufacture and emi filter supplier approved by global customers. The coming RFI/EMI noise interferring issues enounted in several applications such as mobile phone, tablet, NB & MB,...etc, INPAQ aggressively adopts internally unique multilayer ceramic/ferrite co-firing and thin-film ferrite technologies for minaturized size of EMI filter product development, CMF(common-mode filter) is most pouplar one for EMI filter in differential signal line in system.

The thin film CMF product of TCF series provides JEIA size 0806/0605 for smart phone applications, several common mode impedance provided: 12/35/65/90 ohm for USB2.0/MIPI/HDMI/MHL/USB3.0; for I/O port of tablet PC/NB & MB, MCM/HCM series are multilayer types providing common mode impedance (67~220 ohm) with JEIA size (1012/2012/3216) for different I/O such as USB2.0/MIPI/HDMI/MHL/USB3.0/ethernet RJ45 and etc.

Besides, INPAQ allso provides combo functions of EMI+ESD with additonal ESD function (meet std. IEC61000-4-2), thin film type callled TCFE series and multilayer process called HCE/MCE are all available for several component size now for mass production.

For multiple I/O compact PCB layout concern, INPAQ allso provides array types of HCM/MCM, called MCA/HCA.
Two JEIA size 2012/3216 are provided and common mode impedance range : 67/90/120/220 ohm

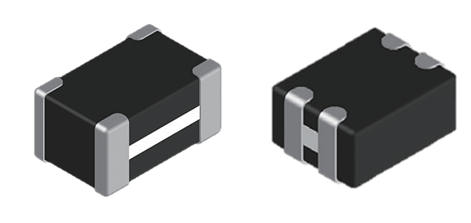

Multilayer Type  Common mode filter (For High speed) MCM Series
Multilayer Type Common mode filter (For High spee
Multilayer Type  Common mode filter (For Ultra High speed) HCM Series
Multilayer Type Common mode filter (For Ultra Hig
LTCC Type Common mode filter (For RFI) HCR Series
LTCC Type Common mode filter (For RFI) HCR Series
Multilayer Array Type Common mode filter MCA Series
Multilayer Array Type Common mode filter MCA Serie

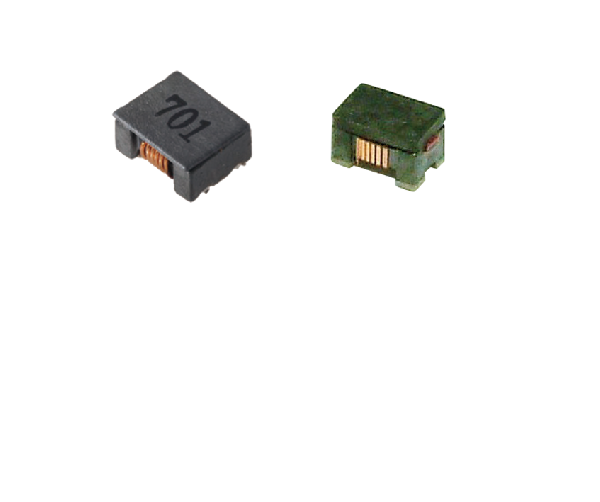

Wire wound Type Common mode filter WCM Series
Wire wound Type Common mode filter WCM Series
AEC Q200 Multilayer Type Common mode filter (For High speed) MCM_W Series
AEC Q200 Multilayer Type Common mode filter (For H
