Inpaq ESD Suppressor EGA series Automotive

ESD Suppressor EGA

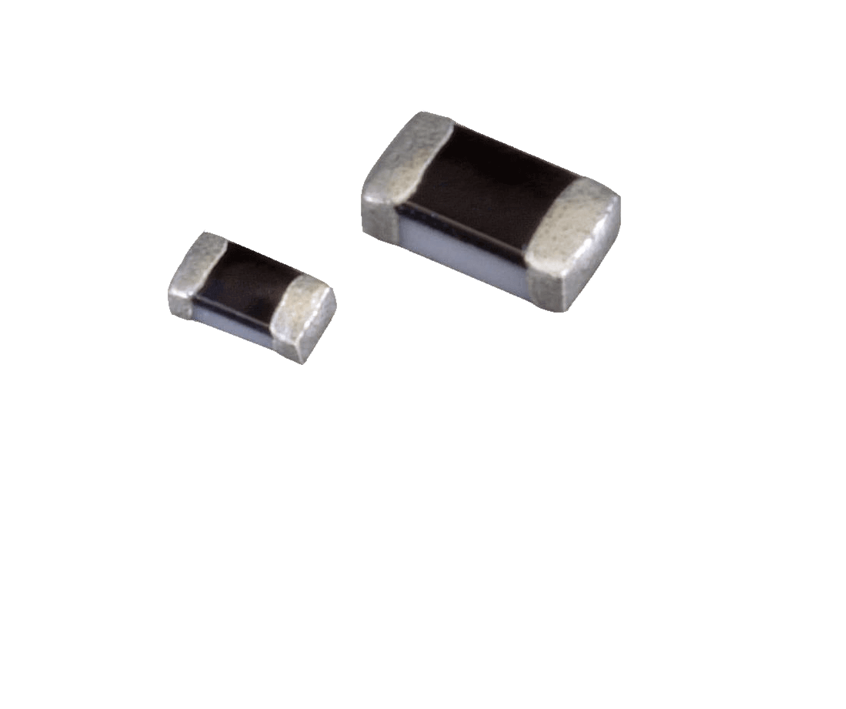

Automotive grade EGA AM series, single package EIA 0402 and 0603, suitable for various transmission signal lines (IEEE-1394, USB2.0/3.0/3.1, DVI, HDMI, DisplayPort... etc.) And car audio and video I/O port ESD protection (IEC61000-4-2) application.
Spectrum
EIA PN Rated
voltage
Leakage
current
Trigger
voltage
Clamping
voltage
Capacitance ESD
Contact
discharge
ESD
Air
discharge
ESD
pulse
withstand
VDC IL Vt Vc Cp KV KV
max Typ Type Type Condition Type Max Type Type times
0402 EGA10402V05AM 5 0.01 300 30 1MHz 0.2   8 15 1000
0402 EGA10402V12AM 12 0.01 300 30 1MHz 0.2   8 15 1000
0402 EGA10402V24AM 24 0.01 300 30 1MHz 0.2   8 15 1000
0603 EGA10603V05AM 5 0.01 300 30 1MHz 0.2   8 15 1000
0603 EGA10603V12AM 12 0.01 300 30 1MHz 0.2   8 15 1000
0603 EGA10603V24AM 24 0.01 300 30 1MHz 0.2   8 15 1000
